Download
Engineering, testing and debugging of serial communication. Supports RS-232/422/423/485 as well as TCP/IP Client/Server/AutoSocket, UDP/IP Client/Server/PairSocket and USB Ser/HID. Optimized for simple command sets of e.g. embedded systems.
Features
- Serial terminal (= connection endpoint) for engineering, testing and debugging purposes.
- Optimized for simple command sets of e.g. embedded systems.

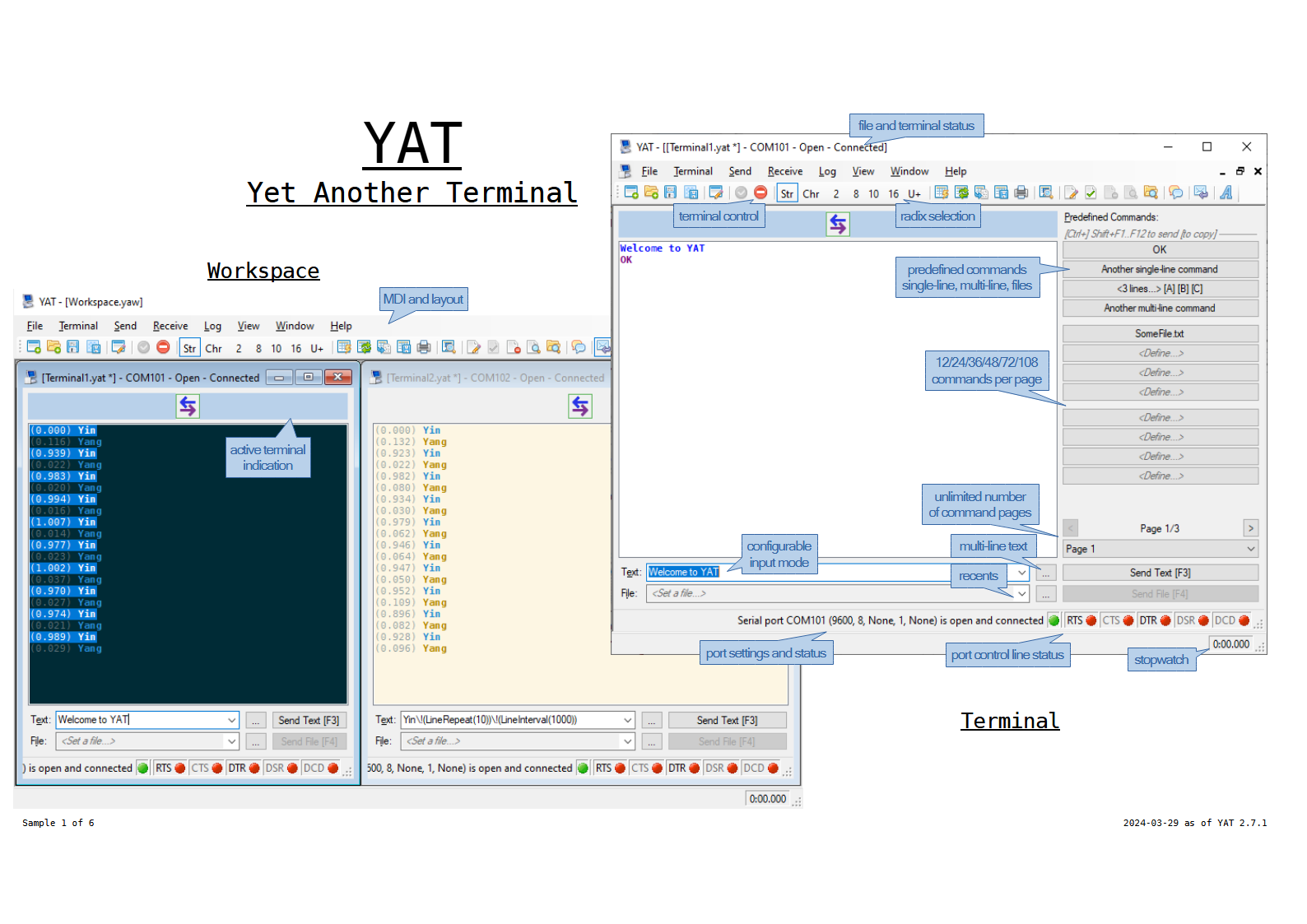

- Workspace supporting multiple terminals.
- Formatting options for excellent readability; incl. predefined and custom color themes.
- Basic features of an emulation terminal such as handling of <CR>, <LF>, <BS>, <BEL> and a set of ANSI escape sequences.
- Configurable input mode.
- Single-line text commands.
- Multi-line text commands.
- History of recent commands.
- Unlimited number of predefined commands.
- Reorder, cut/copy/paste, export/import and even link predefined commands and pages thereof.
- Escapes for bin/oct/dec/hex like "\h(4F 4B)" as well as C-style "0x4F" and "0b01001111".
- Escapes for ASCII controls like "<CR><LF>" as well as C-style "\r\n".
- Special commands like "\!(EOL)", "\!(NoEOL)", "\!(Delay(100))", "\!(LineDelay(500))", "\!(LineInterval(500))", "\!(LineRepeat(10))".
- On-the-fly change of communication settings using e.g. "\!(Port(10))", "\!(Baud(115200)), "\!(PortSettings(115200, 8, 0, 1))".
- Advanced options for in-depth RS-232/422/423/485 debugging of flow control, break condition and buffering.
- Advanced options for text and binary communication.
- Unicode value representation.
- Support for numerous single- and multi-byte character encodings (SBCS/DBCS/MBCS).
- Support for UDP/IP broadcast.
- Send files; including option to exclude empty lines, text patterns like comments and special commands.
- Option to concurrently send text commands or files.
- Option to append CRC (e.g. Modbus), approx. 50 common CRCs predefined.
- Option to automatically trigger an action.
- Option to automatically trigger a response.
- Filtering or suppressing lines of a given pattern.
- Plotting live data.
- Versatile monitoring and logging of sent and received data.
- Search/Find functionality, incl. regex.
- Fully keyboard operable.
- Versatile shell/PowerShell command line including head-less operation.
- The perfect replacement for good ol' fashioned Windows 3.x Terminal, Hyperterminal and other terminals used for device communication.
- Available for Windows as well as Mono/Linux.
Project Samples
License
GNU Library or Lesser General Public License version 2.0 (LGPLv2)Follow YAT
