openCONFIGURATOR is an open-source configuration framework for easy setup, configuration and maintenance of any POWERLINK (https://goo.gl/U9tjiy) network. It ideally complements openPOWERLINK, the open source POWERLINK protocol stack for master and slave.

The project consists of a core library implementing the configuration algorithms and an eclipse plugin base user interface.

For XDD tooling and validation support within eclipse please visit:
https://goo.gl/NBytgg

Please use the update site to install the plugin in your eclipse environment:
http://sourceforge.net/projects/eclipse-plugin.openconf.p/files/update-site/

KNOWN ISSUE WITH THE UPDATE SITE DUE TO SOURCEFORGE ENCRYPTION POLICIES:
https://goo.gl/kVr2ZZ

Install via Eclipse marketplace:
http://goo.gl/vweJ9h

User Manual:
https://goo.gl/viGd5P

For Linux distributions with Boost 1.54.0 please use: https://goo.gl/hMRTss

For Linux distributions with Boost 1.61.0 please use: https://goo.gl/ZSvW7C

Features

  • Integration into Eclipse IDE version 3.8.1 and higher.
  • Modern look and feel in the Eclipse environment.
  • Wizard support for project generation and import.
  • Wizard support for controlled node and redundant managing node generation.
  • Advanced properties support for controlled node, managing node and redundant managing node.
  • Advanced object dictionary view
  • Easy to use mapping editor
  • New parameter view alongside with the object view
  • Device configuration via parameter groups and parameters
  • Network view support for modular head and modular child devices
  • Wizard support for modular devices
  • Parameter configuration support for modular and normal devices
  • Export for generated modular head node XDCs
  • Firmware Management and Update support for openPOWERLINK v2.6 or higher
  • POWERLINK node overview page
  • IO mapping view

Project Samples

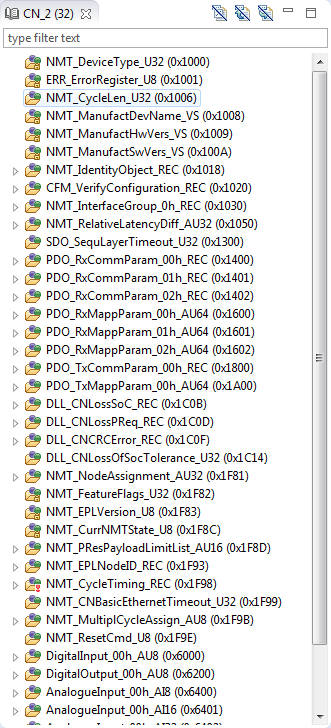

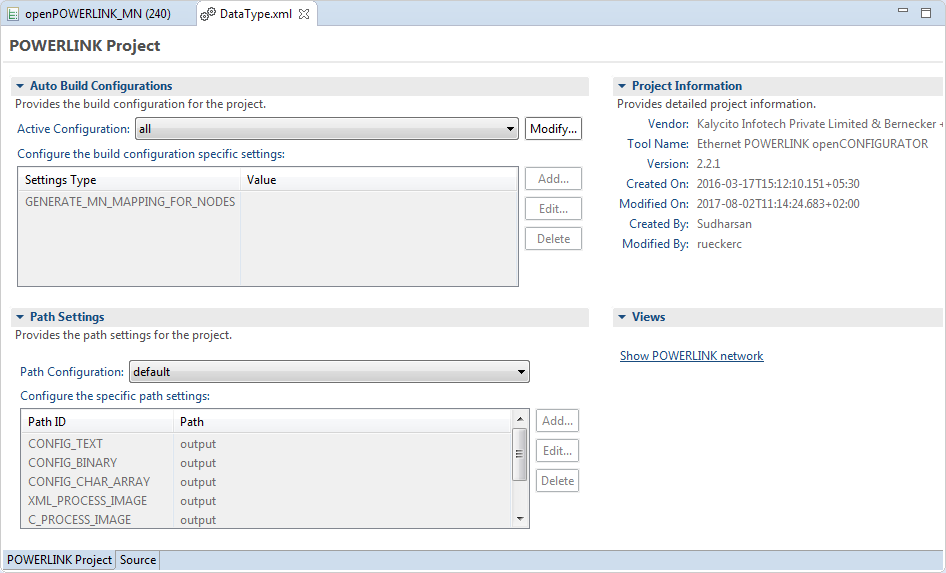

Play Video Eclipse overview Project Editor POWERLINK Node Overview POWERLINK IO View POWERLINK PDO mapping POWERLINK OD view
