dxf2gcode Icon

dxf2gcode

DXF2GCODE: converting 2D dxf drawings to CNC machine compatible G-Code

4.8 Stars (4)
889 Downloads (This Week)
Last Update:
Download DXF2GCODE_Win32_2016-04-17_with_tra…zip
Browse All Files

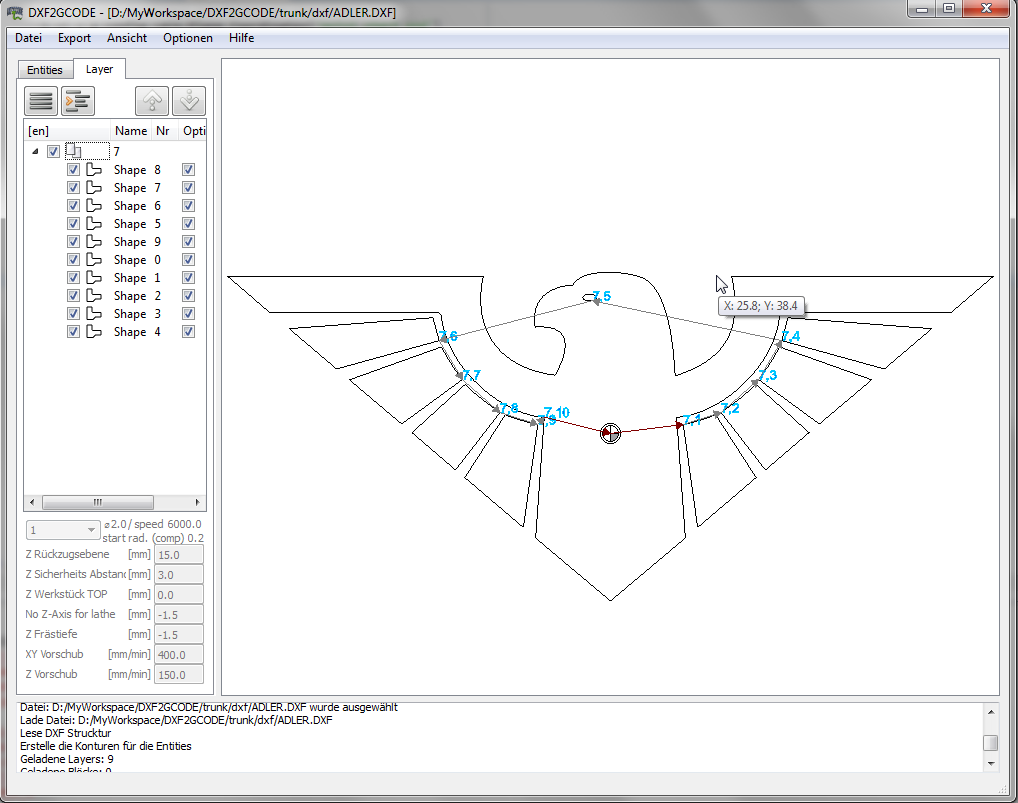

Screenshots

Description

DXF2GCODE is a tool for converting 2D (dxf, pdf, ps) drawings to CNC machine compatible GCode.

Windows, Linux, and Mac support by using python scripting language.

dxf2gcode Web Site

Features

  • Integration in EMC2
  • Fully adjustable Postprocessor
  • G0 moves reduction by route optimisation
  • Import of DXF and PDF
  • Improved accuracy for splines import by Line and Arc's
  • Mill parameter specifcation by layers
  • Drag knife and lathe support
  • Breaks a.k.a Tabs support
  • AutoCAD Blocks and Inserts
  • Multiple tools
  • Multiple language support: english; german; french; russian
  • 3D viewer

KEEP ME UPDATED

User Ratings

★★★★★
★★★★
★★★
★★
3
1
0
0
0
ease 1 of 5 2 of 5 3 of 5 4 of 5 5 of 5 4 / 5
features 1 of 5 2 of 5 3 of 5 4 of 5 5 of 5 4 / 5
design 1 of 5 2 of 5 3 of 5 4 of 5 5 of 5 4 / 5
support 1 of 5 2 of 5 3 of 5 4 of 5 5 of 5 5 / 5
Write a Review

User Reviews

  • 1 of 5 2 of 5 3 of 5 4 of 5 5 of 5

    This is the best DXF to GCode software I have used. I thoroughly recommend this program, and it works very well with Mach3. If I have any comments it's 'Add a text description field for the tools database', it's difficult to remember the tools by number alone. Well done christi_ko, good job.

    Posted 09/12/2016
  • 1 of 5 2 of 5 3 of 5 4 of 5 5 of 5

    Simple to use, powerful options for gcode generation

    Posted 07/19/2016
  • 1 of 5 2 of 5 3 of 5 4 of 5 5 of 5

    Nice and relatively easy to use. I am using it for more than 1 year in cooperation with linuxCNC (machinekit project)

    Posted 04/16/2016
  • 1 of 5 2 of 5 3 of 5 4 of 5 5 of 5

    Fantastic job, well done. I have used this utility many times over the past year and am very thankful for your time, effort and skill putting this together and making it available for others to use. I have never required support so I can't really give it an honest rating, but as I am sure you would provide first class service (for free!) I shall give it five stars.

    Posted 03/13/2016
Read more reviews

Additional Project Details

Programming Language

Python

Registered

2014-02-11
