About OGP Measure-X

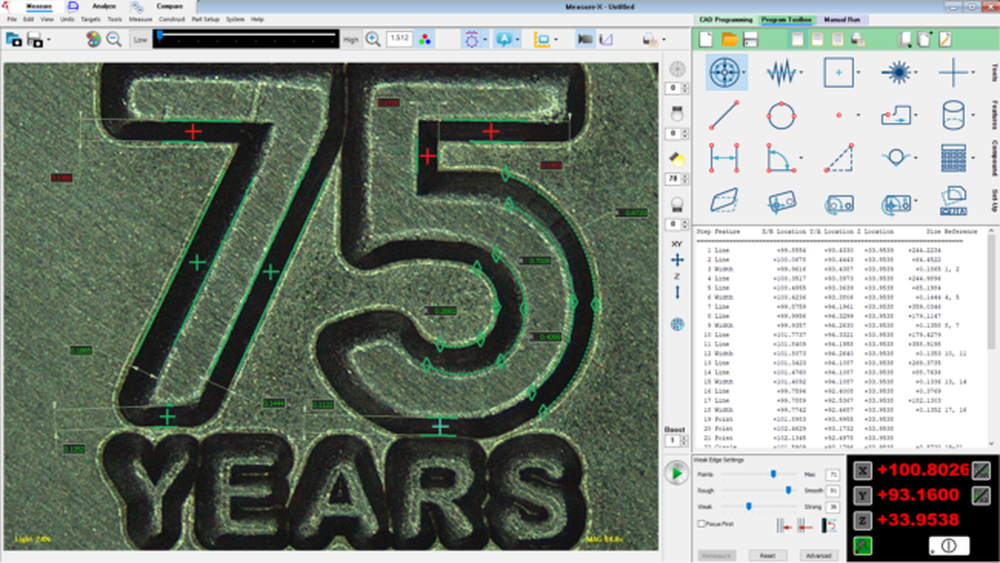

From creating part measurement routines to operating an OGP system in a production work environment, Measure-X® metrology software offers power without intimidation. Measure-X® features a full set of image processing and autofocus tools, geometric functions, ANSI/ISO tolerances, easy editing, and contour analysis. Compatible with touch probes, laser, and rotary indexers. Users can address more complex GD&T requirements such as profile, and true position of features when datum features of size allow mobility on the feature and the datums. The display and reporting capabilities with analysis provide both graphical, color-coded whiskers of deviation, and GD&T callouts on the part CAD.
Other Popular Alternatives & Related Software
PC-DMIS
PC-DMIS is a leading, universal metrology solution that enables users to create and execute precise measurement routines, manage dimensional inspection data, and collaborate on results to support quality assurance in design and manufacturing environments; its flexible architecture supports a wide range of measurement systems including stationary CMMs, portable arms, laser trackers, and multisensor probes with a unified user experience across devices so operators and programmers work in the same interface regardless of hardware. It includes a comprehensive geometric dimensioning and tolerancing toolset, advanced measurement algorithms, offline programming capability so routines can be developed without tying up machines, and modules tailored for specific tasks such as vision metrology, gear inspection, blade scanning, and CNC in-process measurement.
Learn more
OGP ZONE3
ZONE3® Metrology Software represents a totally new way of working with multisensor measurement systems and provides faster, easier, and more productive measurements than ever before. Its interface clearly displays relationships between parts, sensors, datum alignments, and machine accessories. Truly sensor independent with full multisensor capability, including OGP’s most advanced sensor options, without the need to specify a primary sensor. Intelligent routine optimization makes sure steps are run as efficiently as possible by reducing machine movements and measuring features that can be seen at the same time simultaneously. Auto path generation uses CAD or user-entered nominals.
Learn more
OGP VMS
VMS™ is a 2½ D metrology software, with powerful parametric programming and built-in scripting for the creation of custom routines and user interfaces. VMS provides extensive capabilities that allow the software to easily handle difficult lighting conditions, weak edges, and part-to-part variability. Area Multi-Focus (AMF) creates a high-resolution 3D data set from a normal autofocus pass, offering a high throughput alternative to laser surface scanning. Continuous Image Capture (CIC) synchronizes illumination with camera frame acquisition and stage movement to acquire video images while XY stages are in motion. Native video® processing capability allows saved images to be measured using the same analysis tools as live images.
Learn more
OGP Elements
Elements® is a 2D CAD-based metrology software, ideal for measuring parts with very high feature density. It creates measurement routines directly from 2D CAD files with ease. It then automatically optimizes measurement paths to ensure data is gathered as quickly as possible. The Elements advantage lies in handling vast numbers of discrete features quickly and efficiently. CAD import formats include DXF, Gerber, as well as CSV location lists. Advanced review mode allows the user to visually inspect specific features in real time after a run has been completed. The coarse alignment feature allows the positioning of finders to be updated in real time for more accurate measurements. Built-in analysis tools allow for quick and easy analysis of large data trends. These tools include scatter plots, histograms of dimensional values, and whisker plots showing deviation from nominal. Evaluate your measurement requirements and recommend the solution that best fits your needs.
Learn more
