UMHDL is an educational Integrated Development Environment (IDE) intended for learning digital designing with programmable logic devices using Hardware Description Languages (HDL) through simulation. It is an open-source application created at the Miguel Hernández University (UMH). The aim for the UMHDL development was to have a graphical application that allows learning the VHDL language without licensing restrictions (using some existing open-source tools) and requiring few resources. So, the interface developed acts as a front-end that allows writing code (with syntax highlighting), invokes an external VHDL compiler and simulator (such as GHDL), and displays the result of the simulation graphically as waveforms (invoking to GTKWave).
Features
- Currently support several VHDL compilers: GHDL, FreeHDL, and nvc.
- Templates for new VHDL files (main module and test bench).
- Support for Verilog is planned with some free compiler.
- Multi-language: the user can choose the IDE language: Spanish, English, Ukrainian, Arab, French, Chinese, Gallego, Valenciano, Russian, ...
- Multi-platform: UMHDL has been developed in Java, and compiled to native executables using ExcelsiorJet; it has been tested in Windows (32/64-bit), Linux (32/64-bit) and Mac OS X.
- Small footprint.

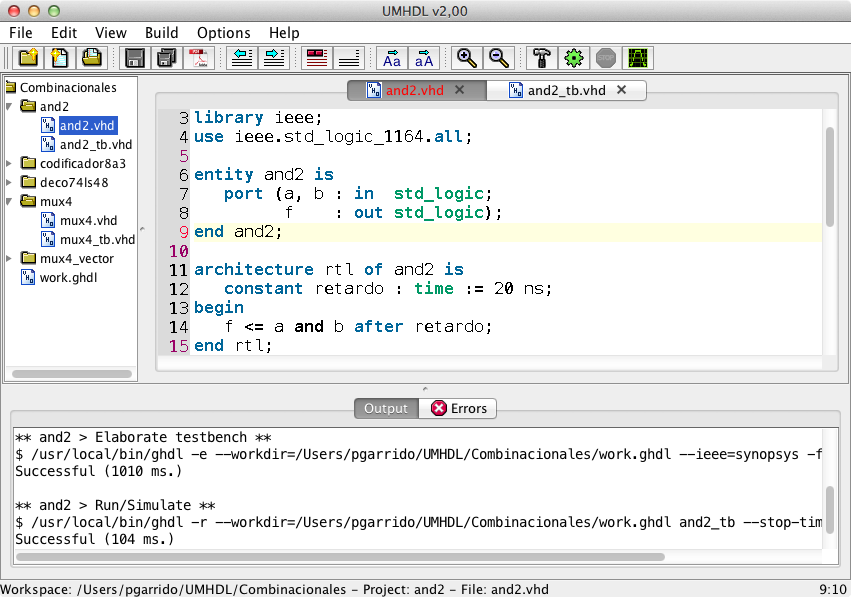

Project Samples
License
GNU General Public License version 3.0 (GPLv3)Follow UMHDL
Other Useful Business Software
Simplify IT and security with a single endpoint management platform
NinjaOne automates the hardest parts of IT, delivering visibility, security, and control over all endpoints for more than 20,000 customers.
The NinjaOne automated endpoint management platform is proven to increase productivity, reduce security risk, and lower costs for IT teams and managed service providers. The company seamlessly integrates with a wide range of IT and security technologies. NinjaOne is obsessed with customer success and provides free and unlimited onboarding, training, and support.
Rate This Project
Login To Rate This Project
User Reviews
-
После установки стала на арабском =( и просила указать какой то непонятный путьReply from UMHDLEdited 2023-02-01
The application try to determine your language depending on your computer locale information when executing for the first time (Russian in your case). If it is still not supported, in the current version there was a bug, and the first language (Afrikaans) were selected. I'm sorry for that. In the next version, the default language will be English in that case, and then you can change it in the configuration dialog to another one. As you cannot understand the application after the installation, to overcome the problem you can edit manually the configuration file named "umhdl.ini" located at your home directory for using the application in English, changing two lines to: "lang_country=US" and "lang_code=en". I hope this helps. The next version will be translated into Russian and other languages (July 2019). Finally, as I cannot try the application in a computer for all the existing languages in the world, if you have any problem after installing the application, please write to me an email (pgarrido@umh.es) before writing a bad review. Many thanks.
