This .NET/Mono library provides some utilities for handling tree structures. Most importantly, it supports the display of tree structures as two-dimensional graphics. By using ready-made interfaces, you can specify the size of your nodes, and the Tree Layout Helper library will take care of placing those nodes appropriately.

Features

  • Supports four orientations
  • Can layout tree structures as trees, as flow graphs and as indented hierarchies
  • Available on NuGet (package "TreeLayoutHelper")

Project Samples

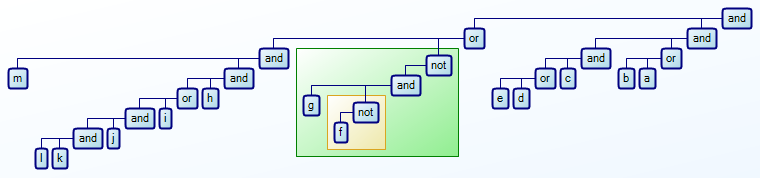

Expression Tree Expression Tree in a Hierarchy Layout Filter/Flow Graph in the Demo Application Expression Tree in the Demo Application

Project Activity

See All Activity >

Categories

Graphics, HMI, Libraries

License

MIT License

Follow Tree Layout Helper

Tree Layout Helper Web Site
