HiPS tool is developed at the Department of Computer Science and Engineering, Shinshu University, which is a tool design and analysis of Petri nets, developed using Microsoft Visual C # and C++. HiPS tool has a way of intuitive GUI which enable hierarchical and/or timed-net design. HiPS tool has also functions of static/dynamic analysis : T-invariant detection, Reachability path analysis, deadlock state detection, and k-boundedness analysis. In addition, it is possible to perform a random walk simulation with each firing steps.

Features

  • Design Entry based on Hierarchical Petri nets
  • Incidence Matrix and Invariant Checking for P/T-net (T-invariant and S-invariant)
  • Structural Properties Checking for P/T-net (Structurally Bounded, (Partially) Conservative, (Partially) Repetitive, and (Partially) Consistent)
  • Subclass structure detection with known reachability criteria: FCF, BCF, NDC, NIC, TC, SC, TCC and SCC
  • Structure Detection Function for Potential L3/L2 Liveness
  • Behavioral Analysis for bounded P/T-net (Reachability, Deadlock, Reversibility and Synchronic Distances)
  • Behavioral Analysis for unbounded P/T-net (Coverability Graphs, Extended Cyclic CRTs Analysis, Partial Deadlock Detection and Synchronic Distances)
  • Liveness and Safeness Properties Checking for Free-Choice (Subclass) net
  • Process Trace Graph Generator using High Speed and Memory Efficiency Algorithm
  • Multi-Threaded Implementations (Partially Support)
  • Step-by-Step Random-Walk Simulation for P/T and High-level net
  • Timeline Step-Magnitude Continuous Simulation for P/T-ne

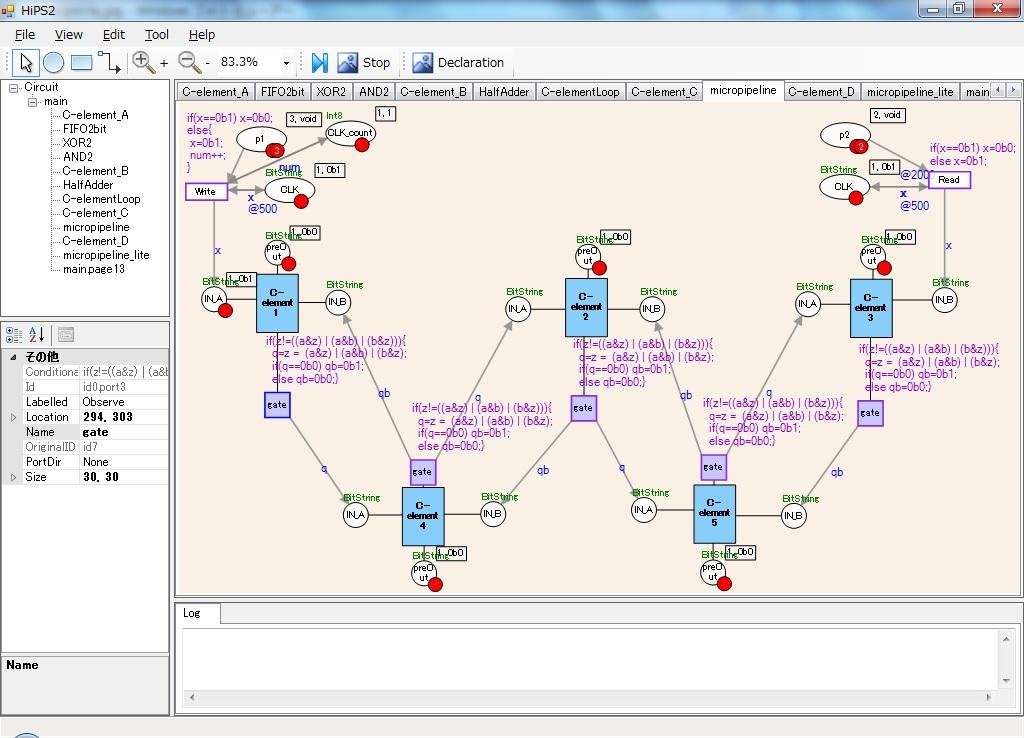

Project Samples
