WFM reader and exporter is the simple application to read WFM file that produced by Tektronix/Rigol oscilloscopes. In the version 2.0:
- Recovered the tabbed interface
- Added Zooming/Scrolling
- Added Legend with Min/Max
- Added CSV / Image exporting
- Removed 3rd party dependencies for straight recompile

Many thanks to Kirk Wolak. https://sourceforge.net/users/kwolak

Downloading of previous versions is not recommended.

If you want to download the version with full source you can go to "Files" section and select appropritate item to download.

Features

  • Tabbed interface
  • Zooming/Scrolling
  • Legend with Min/Max
  • CSV / Image exporting
  • No 3rd party dependencies for straight recompile
  • Full Source Code (see "Files" section)
  • WFMReader Library for easy access to the data in WFMs
  • RectUtils library for easy manipulation with rectangles, points and ranges

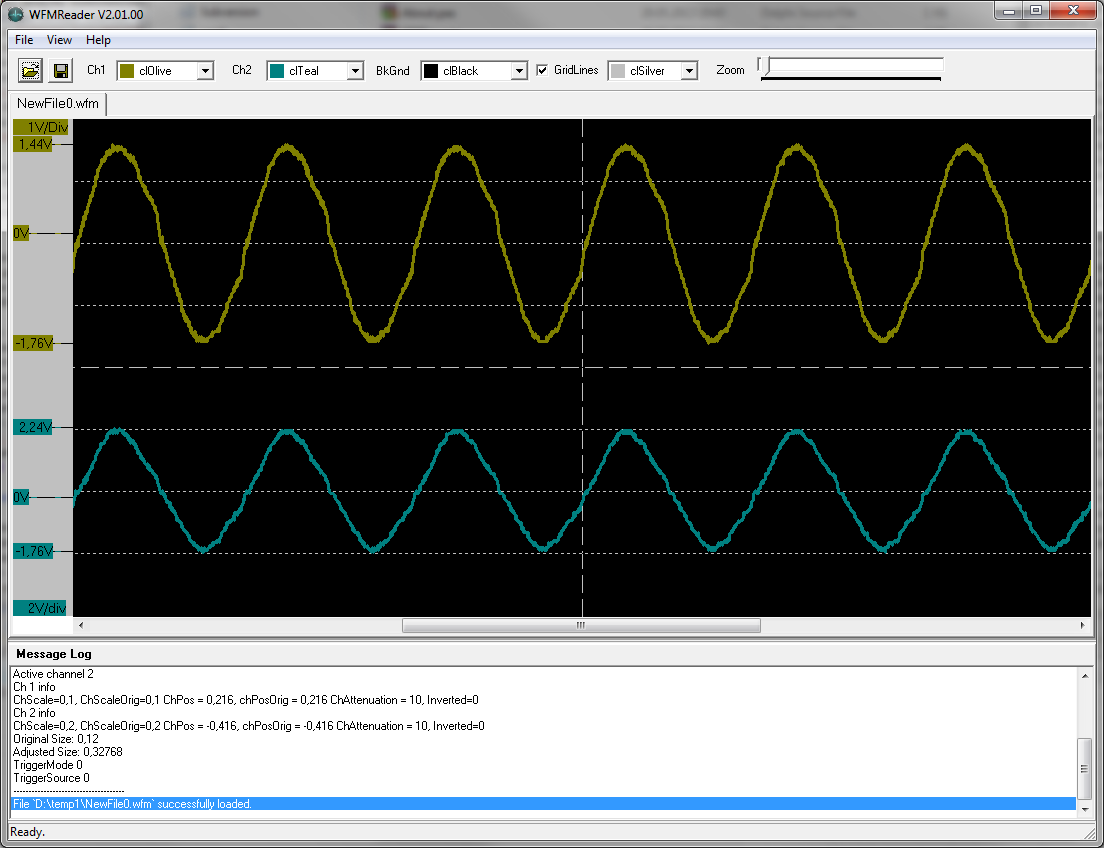

Project Samples

Project Activity

See All Activity >

License

MIT License

Follow WFM Reader

WFM Reader Web Site
