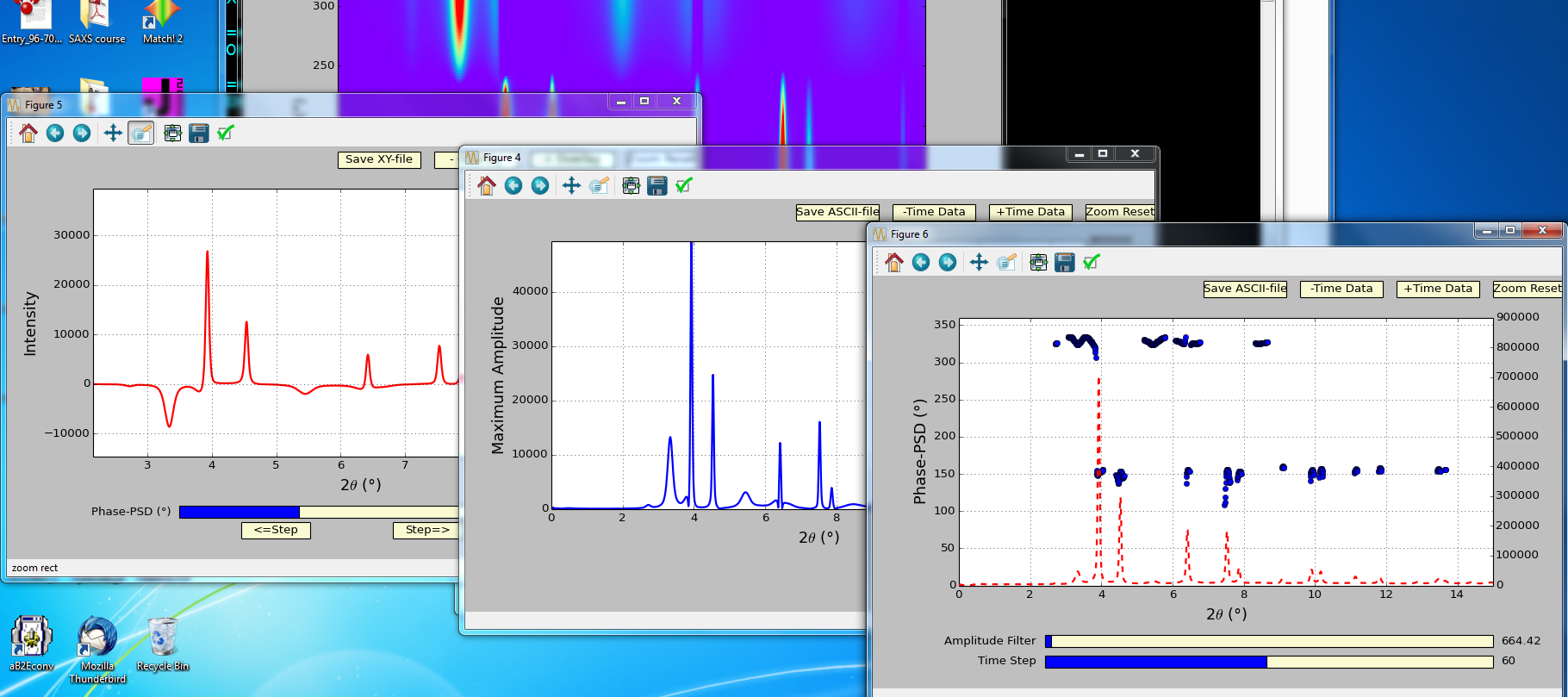

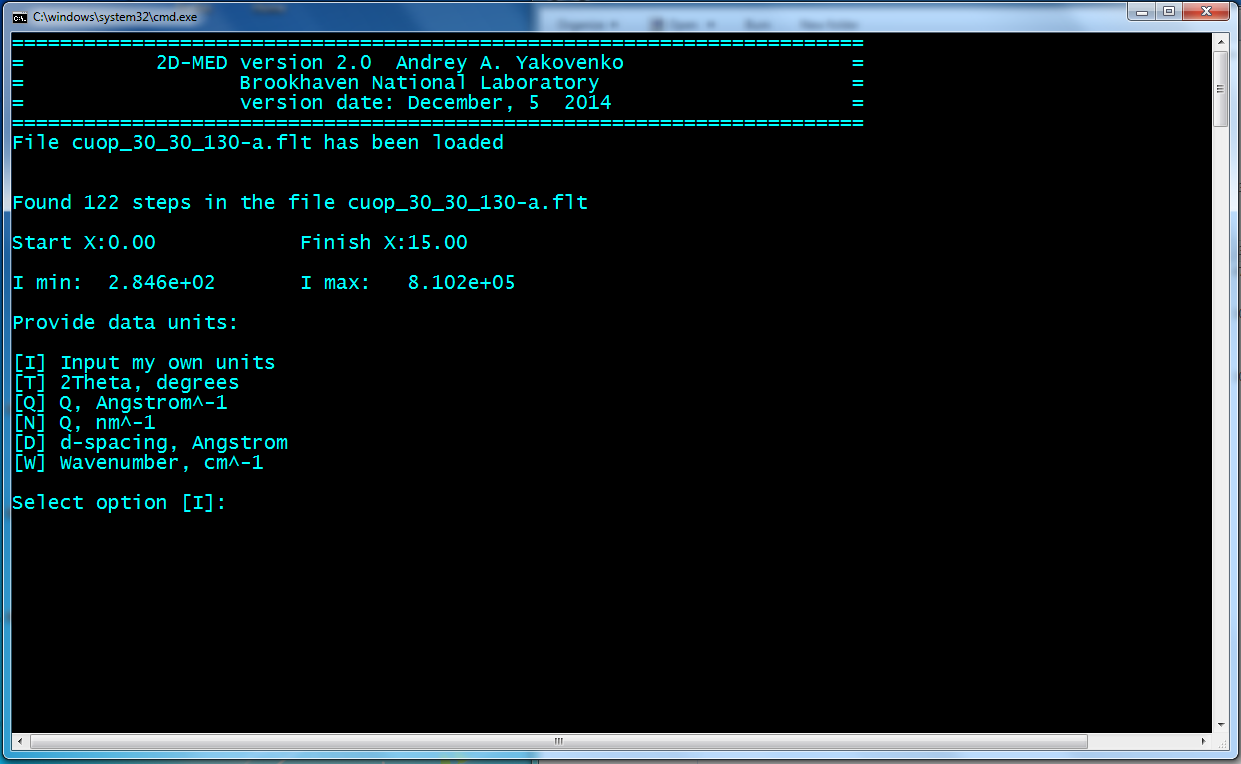

2DMED it is the second out of two programs which allows implementation of Phase Sensitive Detection (PSD) and/or Modulated Enhanced Diffraction (MED) techniques on the in situ data. This software takes normalized and averaged in situ data in flat file format (FLT) and performs PSD transformation which has been described in Urakawa, A.et al. Chem. Eng. Science 2008, 63, 4902. User can choose demodulation index k and perform several demodulation calculations. This is extremely important since demodulation calculations at k = 2 on in situ powder diffraction data represent implementation of MED method which been described in Chernyshov, D. et al. Acta Cryst. 2011, A67, 327. Demodulated data can be then viewed on 2D and/or 1D plot and analyses with different tools including In Phase Plot, Maximum Amplitude Plot and Positive Pattern Plot. Demodulated data also can be saved in ASCII format for further analysis.
