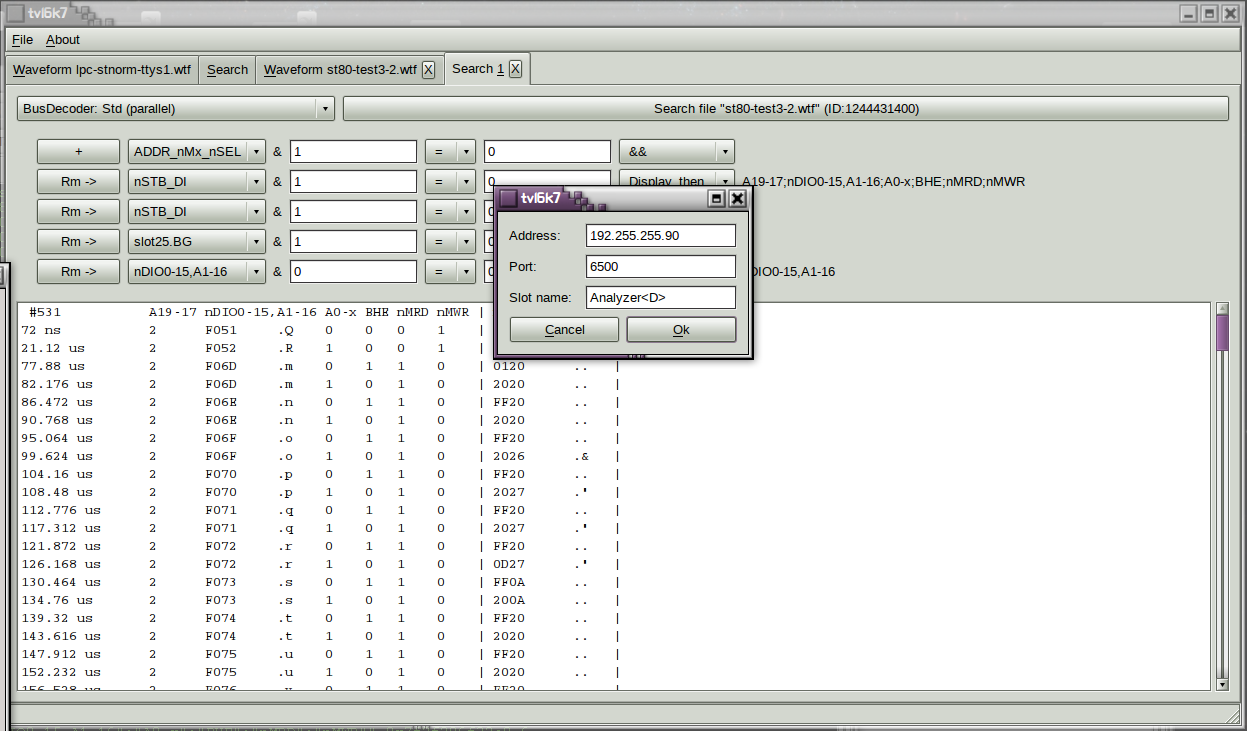

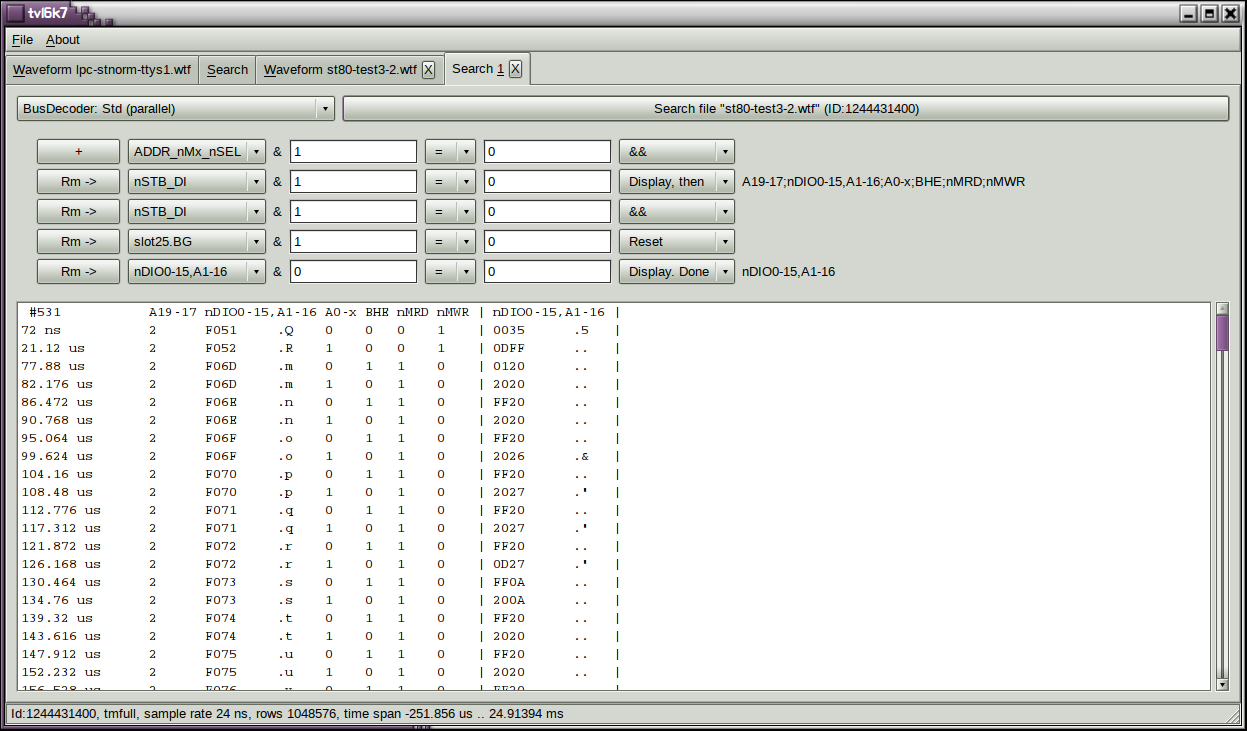

A tool for graphical analysis of digital traces recorded by Agilent's Logic Analyzers like HP16700. It is possible to perform higher level bus protocol decoding and parsing with help of "search" tab. These tabs are used to select the Bus Decoder (plugin shared library), configure Bus Decoder parameters and execute higher level analysis.
The tool tries to be self descriptive and get as many information as possible from HP16700 for better documenting labor: e.g. test cases, spotted issues and so on.
Keywords: Linux, C, C++, Qt, Qt4, Agilent/HP 16700 logic analyzer, Bus decoders (inverse assemblers), bus probing, bus protocol analyze
Features
- bus decoders are plugins (shared libraries)
- more sophisticated bus decoders can be implemented
- RPI support (Agilent 5988-9067EN) for LA cards
- in-house developed format of dataset files.
- can be adapted for custom needs (open source)
- higher precision timestamps are used than these used by native HP1670x UI
- Qt4 based GUI for convenience (e.g. tooltips)

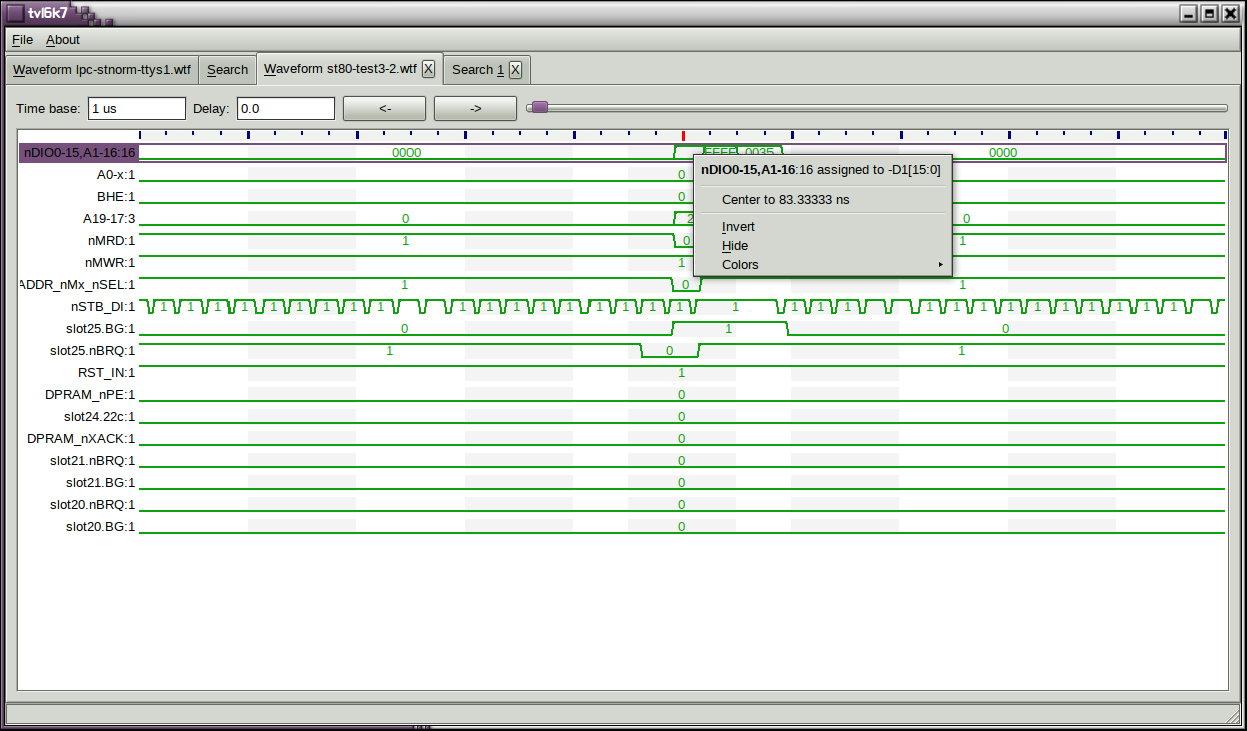

- multiple trace and bus decoder windows
- possible to invert trace after capturing data
