This is a preconfigured version of Rasbian that communicates with Tom de Bree:s Simp-BMS hardware. Presentation of the data from the CAN-bus is presented in Node-Red through its GUI-capability.

Prerequisites:

1 - Raspberry Pi 3 or newer.
1 - USBtin CAN-USB converter
1 - Simp-BMS

https://www.diyelectriccar.com/forums/showthread.php/fs-tesla-vw-outlander-bms-master-198263.html

https://www.fischl.de/usbtin/

See README.txt for more info.

Features

  • USBtin integration with Node-red
  • Read out of CAN-bus data from Simp-BMS
  • Graphical presentation off data in Node-Red
  • Preconfigured image of Rasbian with kiosk mode
  • Show independant voltage level of LEV40N cells

Project Samples

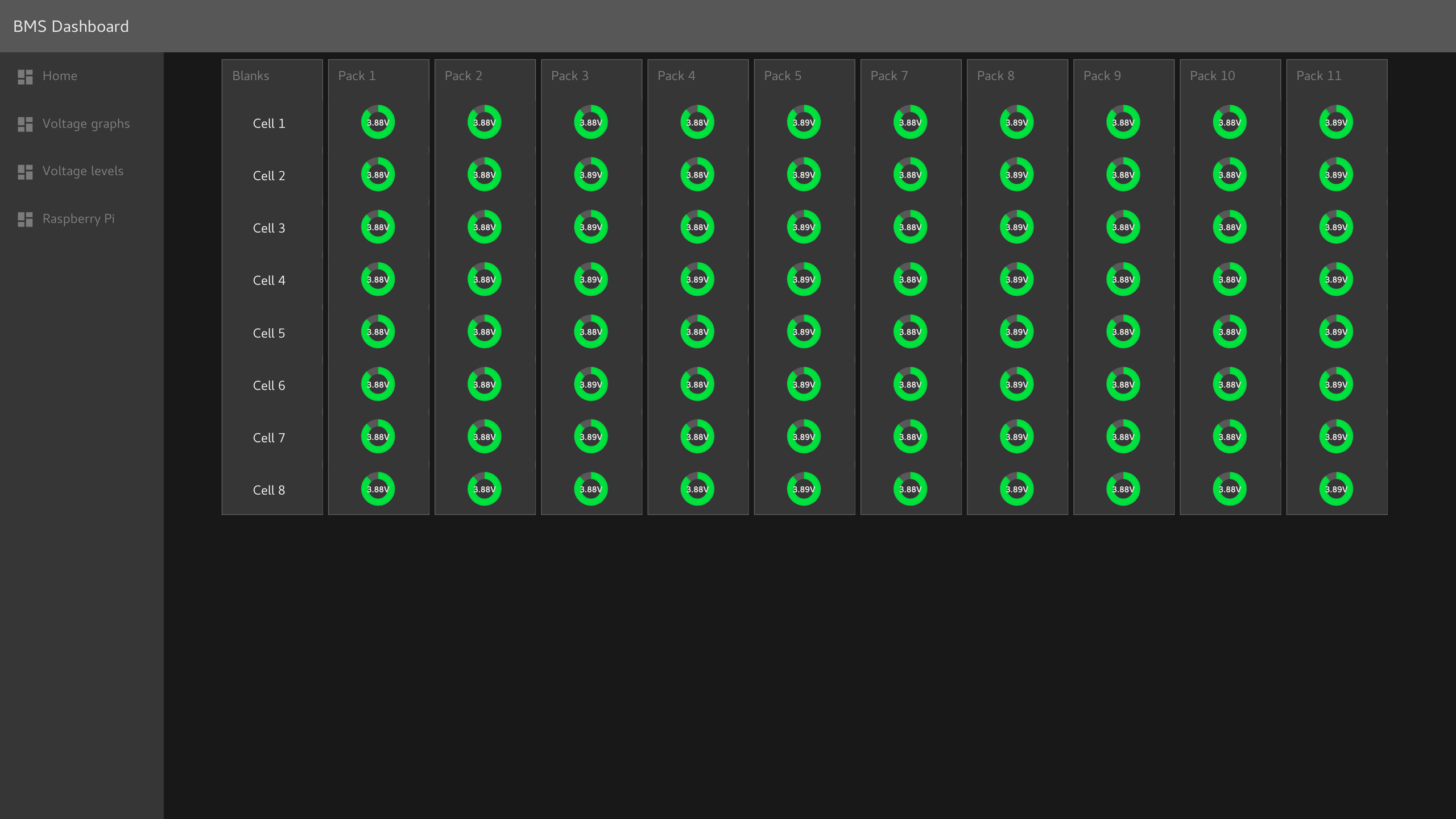

Homescreen Module voltage graphs Cell voltage levels

Project Activity

See All Activity >

Categories

User Interface (UI), Operating Systems, Raspberry Pi

License

MIT License
