PALS software using DRS4 EVM board (http://www.psi.ch/drs/evaluation-board) to determine time between two pulses. Time distance is then send to histogram and evaluated in odher programs likes LT or PALSFit.
2, 3 or 4 detector PALS setup.
DRS4 inputs: Ch1 - Start detector 1274keV, Ch2 - 511keV stop detector1, Ch3 511keV - stop detector 2, Ch4 - external trigger input - after FPGA firmware no external trigger needed.

Project Samples

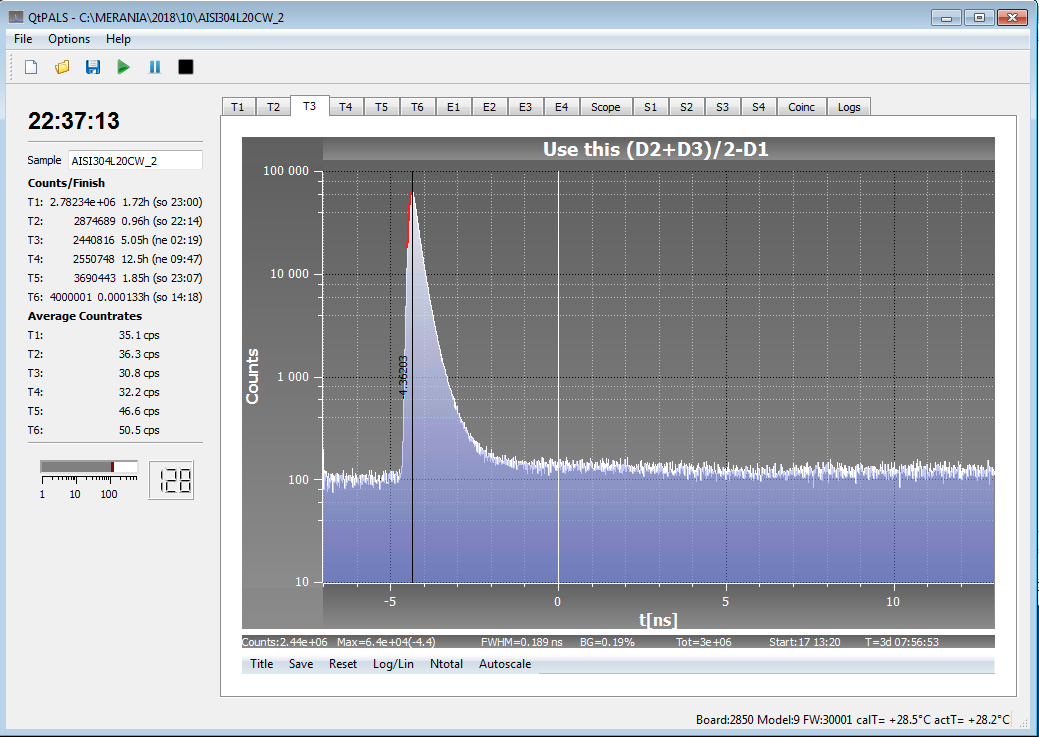

Play Video PALS spectrum Shape filter ON In 3D detector LT1 vs LT2 Energy interval settings In triple coincidence set D2-D3 filter first
