powerfactory-fmu

This project has been moved to: https://github.com/fmipp/powerfactory-fmu

The FMI++ PowerFactory FMU Export Utility is a stand-alone tool for exporting FMUs for Co-Simulation (FMI Version 1.0 & 2.0) from DIgSILENT PowerFactory models. It is open-source (BSD-like license) and freely available. It is based on code from the FMI++ library and the Boost C++ libraries.

The FMI++ PowerFactory FMU Export Utility provides a graphical user interface (new in version v1.0) and - alternatively - Python scripts that generate FMUs from certain PowerFactory models. Additional files (e.g., time series files) and start values for exported variables can be specified.

Currently, two types of simulations are supported: In quasi-static steady-state simulations a power system’s evolution with respect to time is captured by a series of load flow snapshots. RMS simulations allow to calculate the time-dependent dynamics of electromechanical models, including control devices (new in version v0.6).

Features

compliant to FMU for Co-Simulation (version 1.0 and 2.0)
creates FMUs from certain DiGSILENT PowerFactory models
supports quasi-static steady-state simulations
supports RMS simulations
graphical user interface

Project Samples

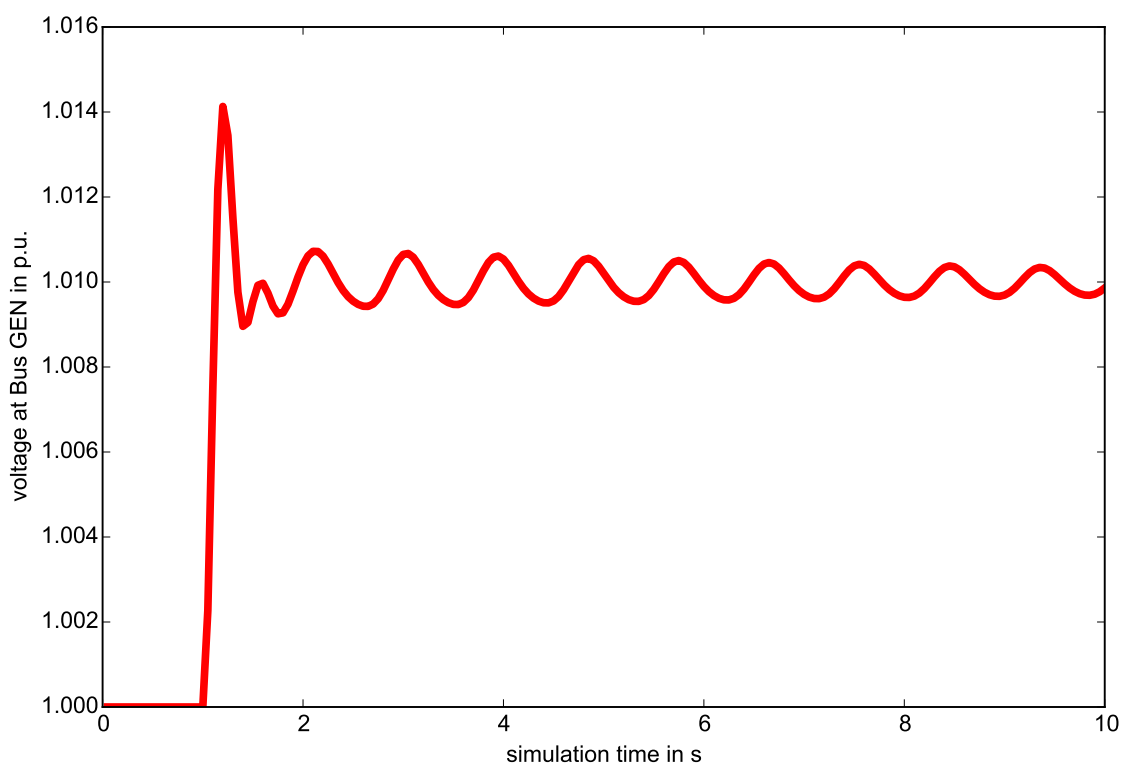

RMS simulation results: Terminal voltage response after an externally invoked step in the voltage reference of the associated simple excitation system.

Project Activity

See All Activity >

License

BSD License

Follow powerfactory-fmu

powerfactory-fmu Web Site

Other Useful Business Software

Our Free Plans just got better! | Auth0

With up to 25k MAUs and unlimited Okta connections, our Free Plan lets you focus on what you do best—building great apps.

You asked, we delivered! Auth0 is excited to expand our Free and Paid plans to include more options so you can focus on building, deploying, and scaling applications without having to worry about your security. Auth0 now, thank yourself later.

Try free now

Rate This Project

User Reviews

Be the first to post a review of powerfactory-fmu!

Additional Project Details

Operating Systems

Windows

Intended Audience

End Users/Desktop, Engineering, Science/Research

Programming Language

C, C++, Python

Related Categories

Python Simulation Software, C++ Simulation Software, C Simulation Software

Registered

2016-01-11
