The standalone GUI plots and generates data points for four and five digit NACA Foils. Data points can be extracted as text, DAT or AUTO-CAD script files for convenient CAD modelling of 2D wing sections.

Features of the program include the ability to specify cosine or linear spacing of data points, specifying reflex to the airfoil and choosing the trailing edge to be either open or closed.

Features

  • Easy Visualization of Airfoil Sections
  • Convenient Generation of Data Point Files

Project Samples

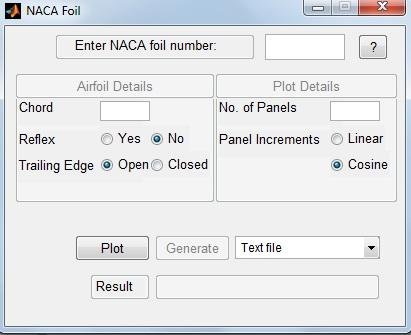

Sample Plot Load Screen
