This project is in beta phase and actually configured for ARM Cortex® M3 MCU, tested with stm32f103c8t6 "blue pill"
Reference for configuration: RM0008 Reference manual STM32F101xx, STM32F102xx, STM32F103xx, STM32F105xx and
STM32F107xx advanced Arm®-based 32-bit MCUs document available on STMicroelectronic official site

Need be installed as prerequistite PYSWD, a python module for debugging microcontrollers with SWD using ST-Link/V2 (/V2-1) debugger available at https://github.com/cortexm/pyswd

Features

  • Running mcu GPIO ports configuration live reading
  • Dumping live access memory address space
  • Initial state, more features are under development

Project Samples

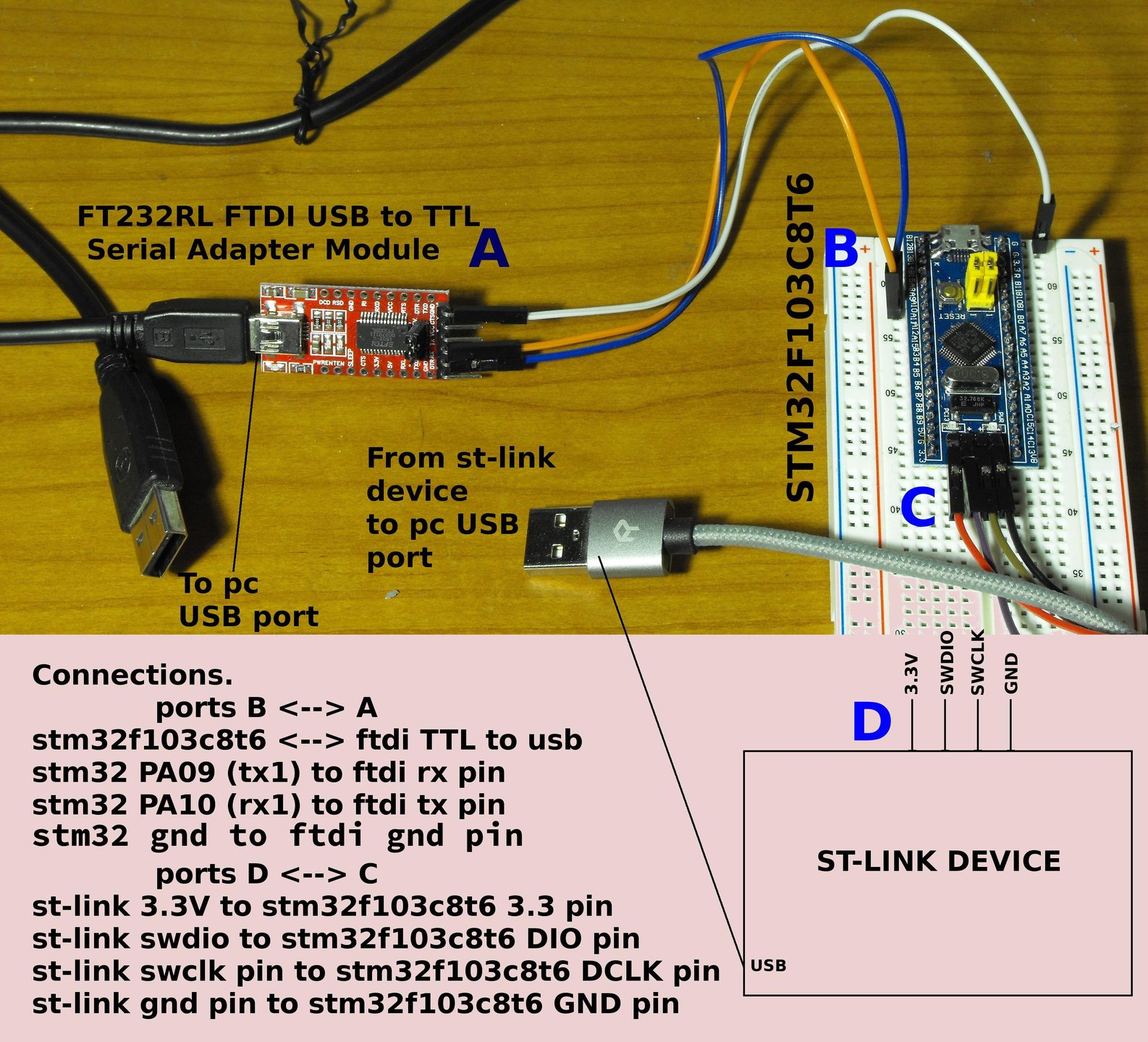

Running simple rtc-clock example and reading gpio registers using st-link device with realtime data sent in simple terminal connected to usb-ttl converter via pin A9 (PA09) and (PA10) - runtime is referred to pyswd module process access interval. Dumping portion of sram, with clock data... simple terminal is a qt4 sample Version 0.1.10.0.: Intruction Set Attribute Register 2, values of connected M4 MPU in Central Processing Unit implementation scheme registers tab. Core registers in Ver. 0.1.5.0 Connections explained for testing Qt4.8 qt creator configuration for source access and user definition

Project Activity

See All Activity >

License

GNU General Public License version 3.0 (GPLv3)
