Gem Measure overlays an adjustable polygon onto a gemstone image or video feed and instantly calculates edge length deviations, symmetry, and overall quality. It's designed for jewelers, gemologists, and hobbyists who need quick, accurate measurements without expensive software.
Works with USB microscopes, webcams, or any image file.
How to Use
Open an image (F) or connect a camera (C).
Adjust the polygon by dragging its vertices to match the gem outline.
Read deviation percentages, symmetry score, and edge lengths directly on screen.
Calibrate (K) by clicking two points and entering their real distance (e.g., 5 mm) to switch to metric units.
Add rulers (M) to measure arbitrary lengths, dividing them into any number of equal parts.
Save results (S) or export a text report (E).
Features
- Live Camera & Image Support
- Adjustable Polygon – Drag vertices to fit any stone shape; supports 3 to 128 sides.
- Real‑Time Deviation Analysis – Color‑coded edges show deviation from perfect symmetry
- Interactive Rulers – Place custom rulers with configurable divisions to measure any distance directly on the image.
- One‑Click Calibration – Click two points and enter the real‑world distance to get measurements in millimeters.
- Undo / Redo – Full history for vertex adjustments.
- Report Export
- Camera Scanning
- Zoom & Pan

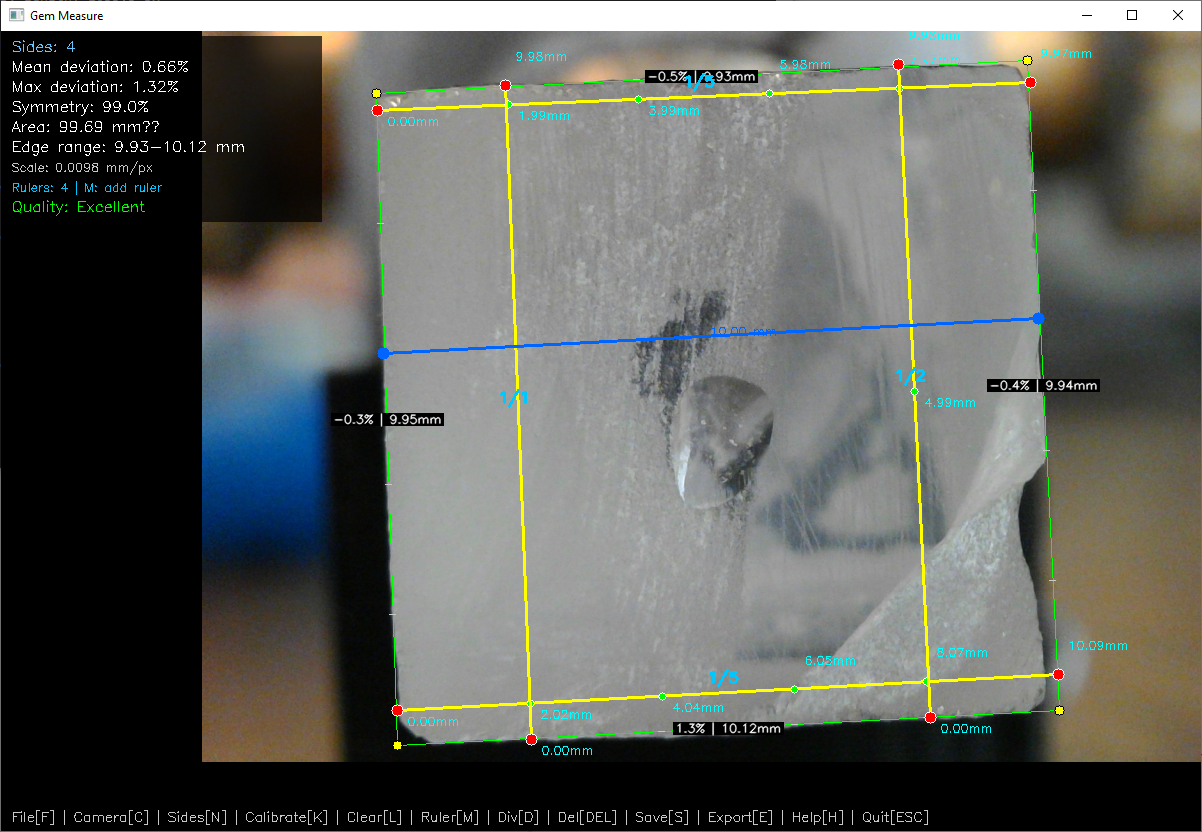

Project Samples
