Fl_MoxGen is a program which will compute the dimensions of a Moxon Rectangle antenna when given the desired frequency and diameter of the construction material (typically wire). It also generates PDF and xnec2c outputs.

Please note that this software is also distributed within the "Andy's Ham Radio Linux" software collection.

Features

  • Requires FLTK 1.1.x
  • Optionally requires libHaru 2.1.0
  • Creates ASCII file suitable for antenna modeling with xnec2c
  • Horizontal and vertical polarizations supported in xnec2c output
  • Optionally creates a PDF file of the antenna and the dimensions
  • Supports SI and imperial units (meters, inches, etc)
  • Support American and Standard Wire gauges

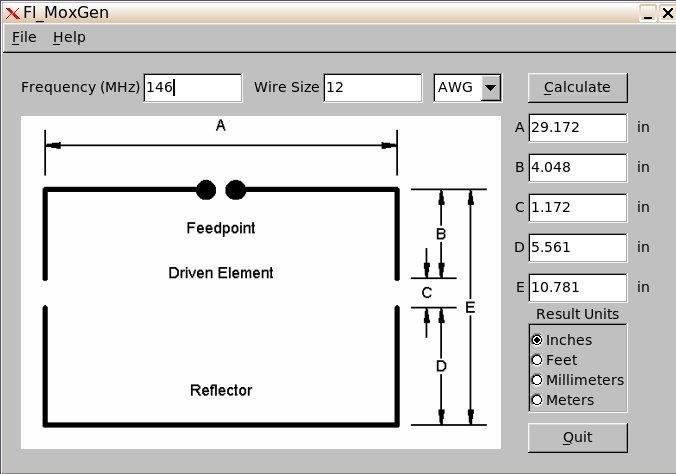

Project Samples

Project Activity

See All Activity >

Categories

Ham Radio

License

GNU General Public License version 3.0 (GPLv3)

Follow KB1OIQ - Fl_MoxGen

KB1OIQ - Fl_MoxGen Web Site
