The software is developed for calculations of hierarchy big circuits by methods of the tensor analysis of networks and diakoptic.
It is planned also to application for joint calculation of circuits and the fields presented by electrical equivalent circuits. For input of circuits editor KiCAD is used.

Features

in more details on site: http://diakoptic.ru

Project Samples

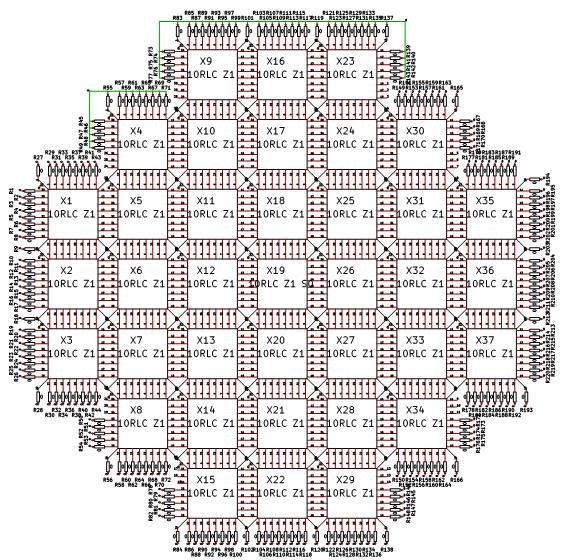

Example of calculation of the small circuit for KiCAD

Result of calculation of the wave equations

Project Activity

See All Activity >

License

GNU General Public License version 2.0 (GPLv2)
