You bought an Arduino, What now?

This Arduino Simulator is different than all the other simulators. If you don’t have components like sensors, Leds..., then this program will simulate the components for you. You need a real Arduino board for testing your programs with your computer.

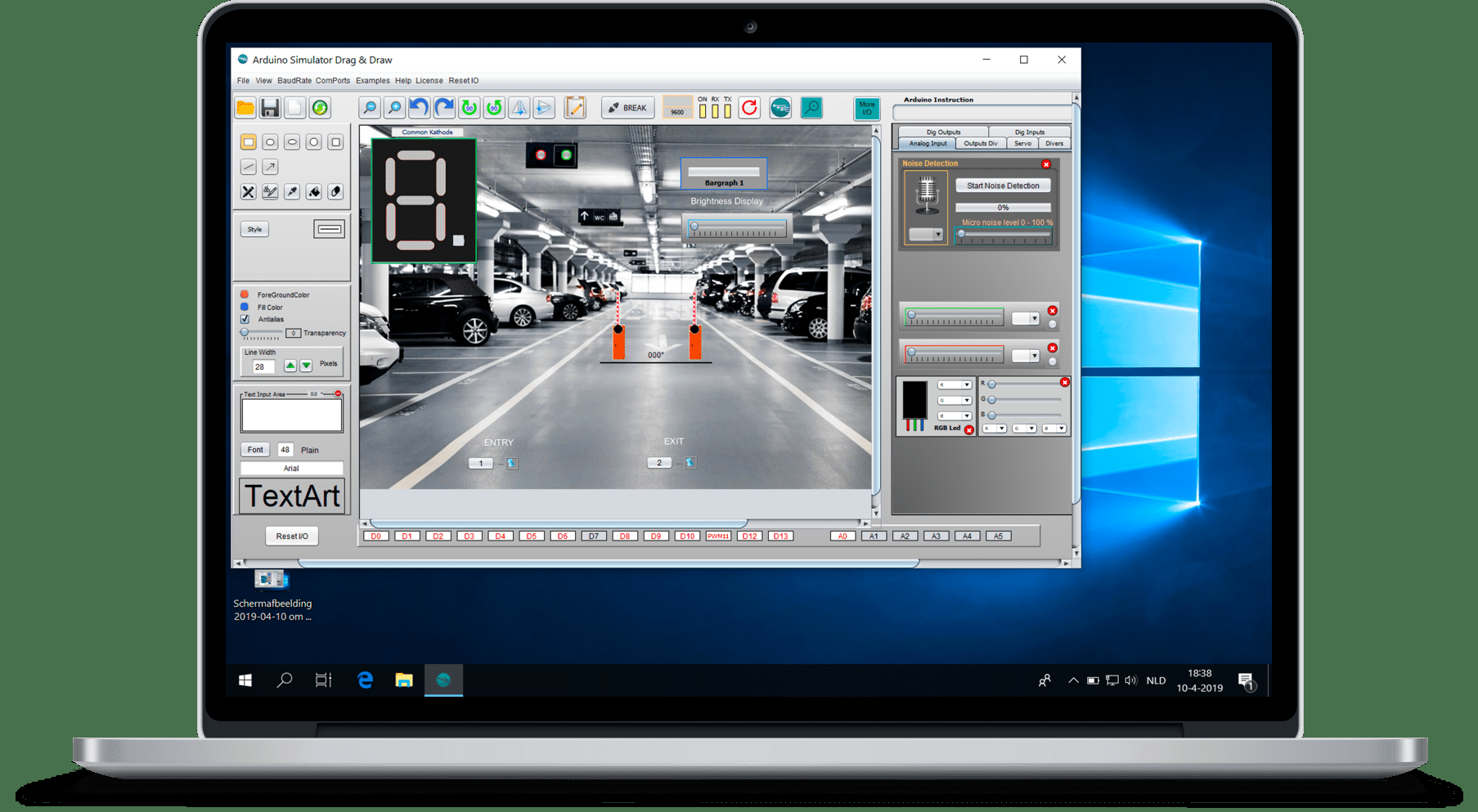

You can drag and drop the components in a worksheet and you can draw everything you want around it. It is also possible to load a background into the worksheet. You can also combine simulated inputs/outputs from the pc and real Arduino IO, now you have made a little HMI (Human Machine Interface).

It's also possible to simulate through TCP WiFi-Ethernet connection.

Free license key: 4C9G9-725IT-CYUV4-6KDBF-CPDEU
More information: https://xevro.be/products/arduino-simulator-drag-draw.html

Features

  • Drag and Drop components
  • Draw lines, circles, ….
  • 14 Leds (4 colors, customizable)
  • Integrated squarewave generator
  • 3 sliders (analog value)
  • LCD display (16-2)
  • 6 analog loggers (PWM signals)
  • 6 analog loggers (A0-A5)
  • 2 motors (left & right turing with PWM)
  • 2 servos
  • Number keypad 4x4
  • 7-segment display
  • Stepper Motor 28BYJ-48
  • Serial monitor with search option
  • TCP Connectivity
  • Hall effect sensor
  • No code changes required
