Scintilla / Bugs / #2361 Cannot paste to a Qt app under KDE on Wayland

Description has changed:

Diff:

--- old
+++ new
@@ -1,3 +1,3 @@
 I am using KDE Plasma 5.26 under Wayland. If I try to copy some text from Scintilla widget and paste it into a KDE app, then nothing is pasted. Though, pasting into XWayland or GTK apps works fine.

-The bug is reproducible both with  Geany 1.38 (https://github.com/geany/geany/issues/3320) and SciTE 5.3.1.
+The bug is reproducible both with  Geany 1.38 ( https://github.com/geany/geany/issues/3320 ) and SciTE 5.3.1.

Neil Hodgson - 2022-10-25

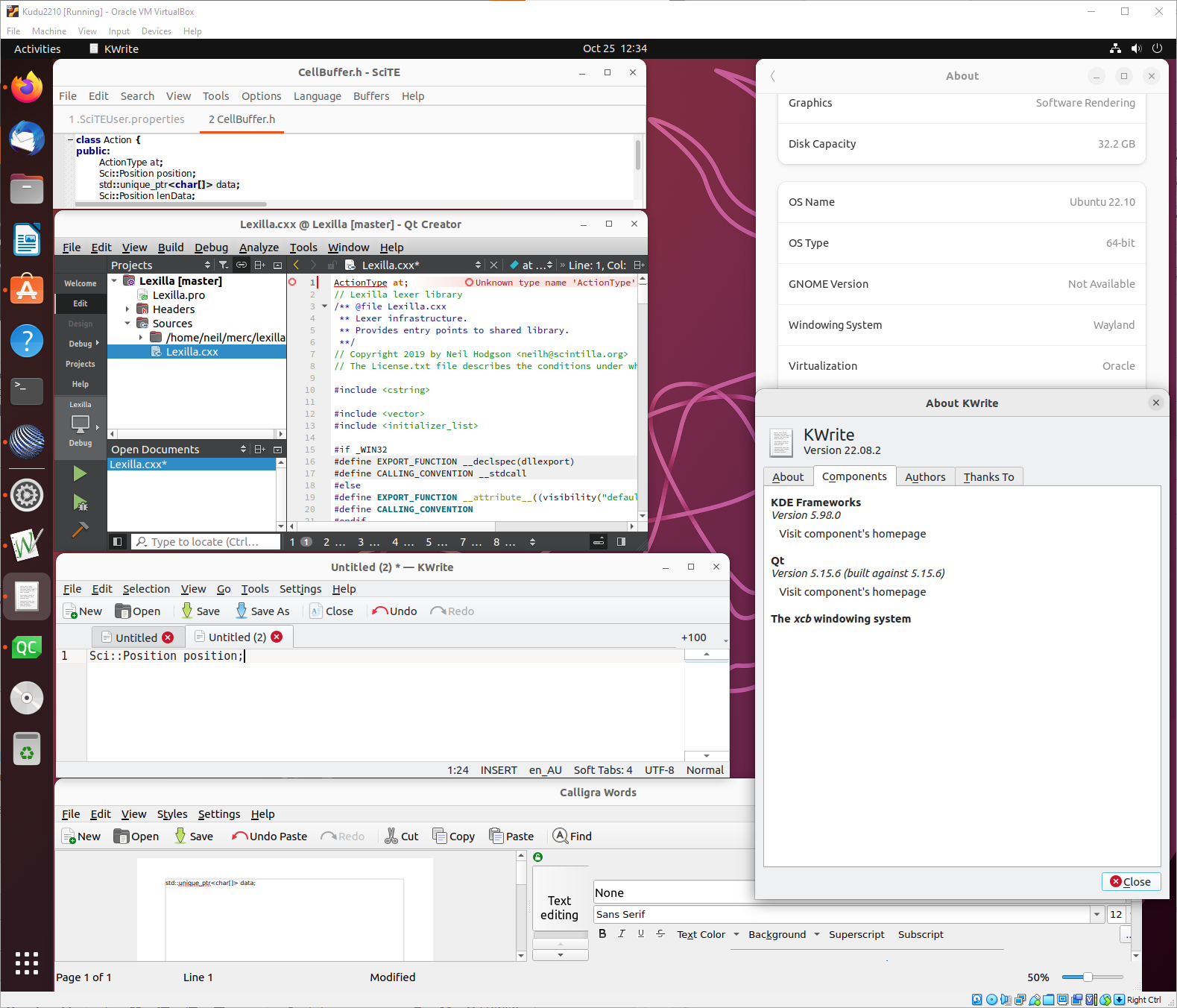

Here is a screenshot after successfully pasting from SciTE 5.3.1 on Ubuntu 22.10 with Wayland into Qt Creator, KWrite, and Calligra Words.

The about boxes from GNOME and KWrite show that it is using Wayland and other versions are KDE Frameworks 5.98.0 and Qt 5.15.6.

This bug report is non-specific: say which operating system, distribution, and version are being used along with the KDE app and its version.

If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

Neil Hodgson - 2022-10-25

status: open --> open-works-for-me
If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

Alexander - 2022-10-25

This bug report is non-specific: say which operating system, distribution, and version are being used along with the KDE app and its version.

I am using the most recent Debian GNU/Linux Testing with a KDE Plasma 5.26 session under Wayland. The bug happens with many different KDE and Qt apps, moreover, the clipboard history in the KDE Plasma itself is not populated with the copied text.

Maybe the main difference which triggers the bug is using KDE session instead of GNOME session.

Copying from other GTK+ apps, or, considering Geany, copying from anywhere except the Scintilla widget, works.

If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

Neil Hodgson - 2022-11-01

Reproduced with copying from SciTE to Kate on Debian Wayland. On this system, it still copies from SciTE to gedit.

Copying the path with the File | Copy Path command does copy to Kate. That is using the simpler gtk_clipboard_set_text API instead of gtk_clipboard_set_with_data which is called in Scintilla to allow multiple formats and asynchronous access. Its likely that the current KDE implementation on Wayland has a problem with this API or its use. Since it works with GTK applications on Debian + Wayland and also with KDE applications on Ubuntu + Wayland, I'd hope that it gets fixed with updates to KDE's Wayland support.

If anyone is sufficiently motivated, it may be possible to provide an optional alternative code path in Scintilla, possibly with decreased functionality by not supporting multiple clipboard formats. However, supporting multiple clipboard formats is important to future extensibility to allow better provision of columnar and line-oriented copies as is done on Win32.

👍
1

If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

Neil Hodgson - 2022-11-01

labels: paste, wayland --> paste, wayland, kde

status: open-works-for-me --> open-accepted
If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

Alexander - 2022-11-01

Also reported the bug to the KDE side: https://bugs.kde.org/show_bug.cgi?id=461301

If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

Alexander - 2022-11-02

The bug is definitely on the Scintilla side.

The code sets "UTF8_STRING" and "STRING" as MIME types when copying the text:
https://sourceforge.net/p/scintilla/code/ci/default/tree/gtk/ScintillaGTK.cxx#l123

At the same time, Qt under Wayland doesn't understand such MIMEs and accepts only "text/plain;charset=utf8" or "text/plain":
https://github.com/qt/qtwayland/blob/dev/src/client/qwaylanddataoffer.cpp#L18-L21
https://github.com/qt/qtwayland/blob/dev/src/client/qwaylanddataoffer.cpp#L126-L127

GTK apps, as well as GNOME under Wayland seem to understand these MIME types, but KDE doesn't (and AFAIK doesn't have to).

The attached patch seems to fix the original issue. There are also issues with drag&drop and middle button copying between GTK and Qt apps, however I hope that the issue there is basically the same and can be fixed by using the right MIME types.

scintilla.patch

If you would like to refer to this comment somewhere else in this project, copy and paste the following link:
- Neil Hodgson - 2022-11-06

  The bug is definitely on the Scintilla side.

  This is definitely a KDE bug as it works with GTK.

  The code sets "UTF8_STRING" and "STRING" as MIME types when copying the text

  These are target atoms, not MIME types and are defined by the Inter-Client Communication Conventions Manual https://www.x.org/releases/X11R7.7/doc/xorg-docs/icccm/icccm.pdf and subsequent documents https://www.irif.fr/~jch//software/UTF8_STRING/

  This code works with KDE applications in other circumstances so would be best fixed upstream.

  GTK apps, as well as GNOME under Wayland seem to understand these MIME types, but KDE doesn't (and AFAIK doesn't have to).

  KDE may choose to be incompatible with older software but that makes it less useful.

  If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

Alexander - 2022-11-06

These are target atoms, not MIME types and are defined by the Inter-Client Communication Conventions Manual

Are they specific to X.org or are the same target atoms also specified for Wayland?

Last edit: Alexander 2022-11-06

If you would like to refer to this comment somewhere else in this project, copy and paste the following link:
- Neil Hodgson - 2022-11-08

  freedesktop.org is the organisation that is supposed to harmonize different windowing systems and toolkits. Wayland (https://wayland.freedesktop.org/) is a freedesktop.org project. While they have documents about some aspects of clipboard handling, I haven't found one that defines mime-types and target atoms and their relationship.

  https://www.freedesktop.org/wiki/Specifications/

  If you would like to refer to this comment somewhere else in this project, copy and paste the following link:
  - Alexander - 2022-11-08

    Anyway, ICCCM is only related to X.org, not Wayland. Relying on the X.org conventions under Wayland is not a good idea.

    By the way, GTK4 has removed the support for UTF8_STRING and STRING atoms under Wayland.

    Also, the concerns related to usage of text/plain;encoding=utf8 alongside with UTF8_STRING were risen before, see https://sourceforge.net/p/scintilla/bugs/2175/, for example.

    Last edit: Alexander 2022-11-08

    If you would like to refer to this comment somewhere else in this project, copy and paste the following link:
    - Neil Hodgson - 2022-11-10

      Relying on the X.org conventions under Wayland is not a good idea.

      Where are the Wayland conventions documented?

      If you would like to refer to this comment somewhere else in this project, copy and paste the following link:
      - Alexander - 2022-11-10

        I am unsure if they are currently documented anywhere, unfortunately.

        If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

        Neil Hodgson - 2022-11-10

        Scintilla's GTK platform layer is written to the GTK API which covers multiple underlying platforms: X, Wayland, Win32, macOS, and potentially others. On Win32 and macOS, UTF8_STRING and STRING are not the literal clipboard types since they are from X and the clipboard code needs to interoperate with native applications.

        On Win32 the normal text type identifier is CF_UNICODETEXT (a CLIPFORMAT) and on macOS it is public.text (a Uniform Type Identifier). Both of these place UTF-16 on the clipboard instead of UTF-8. Thus, there is interpretation of clipboard actions occurring.

        If some MIME types have become the way to specify clipboard types on Wayland then we need to know the scope and history of this - Scintilla still works with GTK 2. What happens when text/plain;charset=utf-8 is used on macOS or Win32? Does this depend on GTK version?

        If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

        Alexander - 2022-11-10

        If some MIME types have become the way to specify clipboard types on Wayland then we need to know the scope and history of this - Scintilla still works with GTK 2. What happens when text/plain;charset=utf-8 is used on macOS or Win32? Does this depend on GTK version?

        Do you mean GTK under Windows and macOS here, right?

        If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

        Neil Hodgson - 2022-11-12

        Do you mean GTK under Windows and macOS here, right?

        Yes, GTK on Windows and macOS which are supported by Geany.

        If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

Alexander - 2022-11-06

By the way, pasting into GTK4 applications doesn't work either. Seems that GTK has dropped the support for compatibility atoms on the toolkit level, but I don't know how it works in the recent GNOME.

If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

Chris Mayo - 2022-11-26

There is a change in GTK 3.24.35:

wayland: Translate STRING/UTF8_STRING selection atoms to mimetypes
https://gitlab.gnome.org/GNOME/gtk/-/commit/0c1ea9221976b838101d2593754b658808fdc542

Got included in Debian Testing gtk+3.0 (3.24.34-4)
https://metadata.ftp-master.debian.org/changelogs//main/g/gtk+3.0/gtk+3.0_3.24.34-5_changelog

as:
wayland-Translate-STRING-UTF8_STRING-selection-atoms-to-m.patch

I've seen the same problem with SciTE 5.3.1 on GNOME 43, i.e. pasting to Wayland programs, but not XWayland after updating to gtk+-3.24.3.

After reverting the above GTK commit pasting worked again.

If you would like to refer to this comment somewhere else in this project, copy and paste the following link:
- Chris Mayo - 2022-11-26

  Apologies, this ticket predates gtk+3.0 (3.24.34-4) which was released on Fri, 18 Nov 2022 11:53:03 +0000.

  I guess this is similar, but different.

  If you would like to refer to this comment somewhere else in this project, copy and paste the following link:
  - Chris Mayo - 2022-11-26

    Except that, scintilla.patch above does fix this on vanilla GTK 3.24.35.

    If you would like to refer to this comment somewhere else in this project, copy and paste the following link:
    - Neil Hodgson - 2022-11-26

      It looks like the problem will be solved once the GTK 0c1ea9221976b838101d2593754b658808fdc542 commit reaches distributions implying that there is no need to change Scintilla.

      The issue that led to the commit shows this issue was also occurring with Eclipse.
      https://gitlab.gnome.org/GNOME/gtk/-/issues/5217

      If you would like to refer to this comment somewhere else in this project, copy and paste the following link:
      - Alexander - 2022-11-27

        After upgrading to GTK 3.24.35 (which seems to include the commit 0c1ea9221976b838101d2593754b658808fdc542) I cannot paste the text from Geany and SciTE even to the GTK3 and XWayland apps.

        So, the bug definitely needs to be patched from the Scintilla side.

        If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

        Neil Hodgson - 2022-12-01

        seems to include the commit

        Not definitive enough for me. As GTK upstream have worked on a fix, any problems with that fix should be reported there.

        If you would like to refer to this comment somewhere else in this project, copy and paste the following link:

        Chris Mayo - 2022-12-02

        Raised:
        https://gitlab.gnome.org/GNOME/gtk/-/issues/5397

        If you would like to refer to this comment somewhere else in this project, copy and paste the following link:
