Engineers searching for an MBD workflow CAD translation software
About MBDVidia

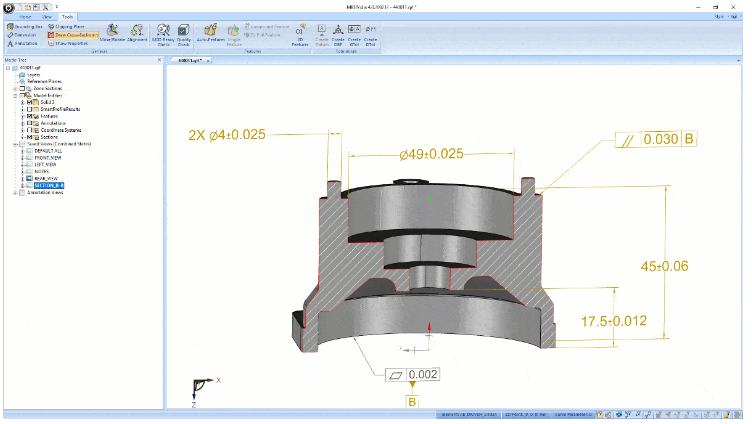

Automatically assign balloon numbers, designate major & minor criticalities and track revision changes from the authority or native CAD. Produce machine-readable PMI. Heal GD&T errors, repair conflicting data, and optimize CAD with MBD ready check. Examine easy-to-read views and measurement data that are populated in a customizable Excel form. Examine easy-to-read views and measurement data populated in a customizable MBD-rich form like Excel, Net-Inspect, HTML, PDF, etc. Import measurement results data back into MBD model for CAD model with PMI that is human & machine-readable. With MBD ready check, make sure your PMI is machine readable to drive downstream automation.
