[Introduction]

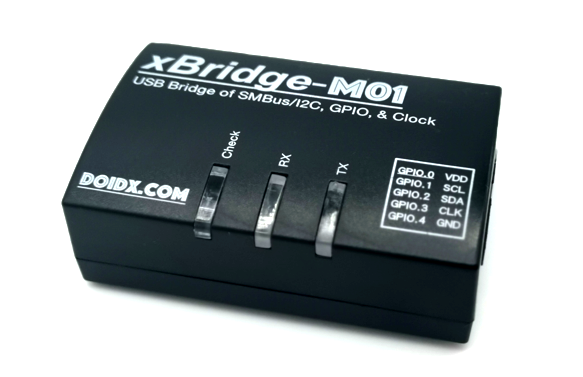

The xBridge-M01 product is a multifunctional USB bridge developed by Doidx. It can control and transmit SMBus/I2C, GPIO,
Clock and other interfaces through USB. The product includes software and hardware. It has the characteristics of easy use and development. The core chip is CP2112
Graphical software and operating manual can be downloaded for free at http://xbridge-m01.doidx.com
Provide the underlying Java API, http://xsmbus-m01.doidx.com , which can do simple testing and develop user-specific graphical interface products.
xSmbus-xx, xBridge-xx do not need to install the driver according to the operating system in advance, nor select the COM port requirement,
as long as they are in the Java environment, they can be plug and play.
You can buy the product from:
- China, https://shop255163877.taobao.com
- Taiwan, you can buy on https://www.ruten.com.tw/user/index00.php?s=doidx
Features
- Compatible with USB 2.0 full speed
- Standard Smus/I2C interface with a frequency of 100->400KHz.
- Support the Java platform, Java has many free libraries for rapid program development.
- Cross platform restrictions, Windows7/10 32/64, MacOS 10-11.2.3, Ubuntu20.4 32/64
- The developed product also has cross-platform functions
- No installation Plug-and-Run, and a single file is installed directly.
- Interactive and scripting functions, even partners without programming skills can use
- Equipped with TX / RX indicator lights, and self-test function, easy to understand the status
- GPIO settings - Several sets of graphical modules that can be quickly applied and tested. Scan, Command, Memory... and the ability to self-exclude problems.
- Provide rich APIs and examples
- Support Chinese (Simplified and Traditional), English, and Japanese
- CP2112 inside
