2D Structural Analysis in Python by Ritchie Vink
A collection examples of 2D Finite Element Analysis (FEA) made with Jupyter Notebook Lab - https://jupyter.org/
To install Jupyter - https://jupyter.org/install
=====
App is available on Play Store -> https://play.google.com/store/apps/details?id=com.ulm.struct
If you want to download a python editor for your android smartphone follow this link -> https://play.google.com/store/apps/details?id=com.ulm.python

Features

  • trusses, beams, moments lines

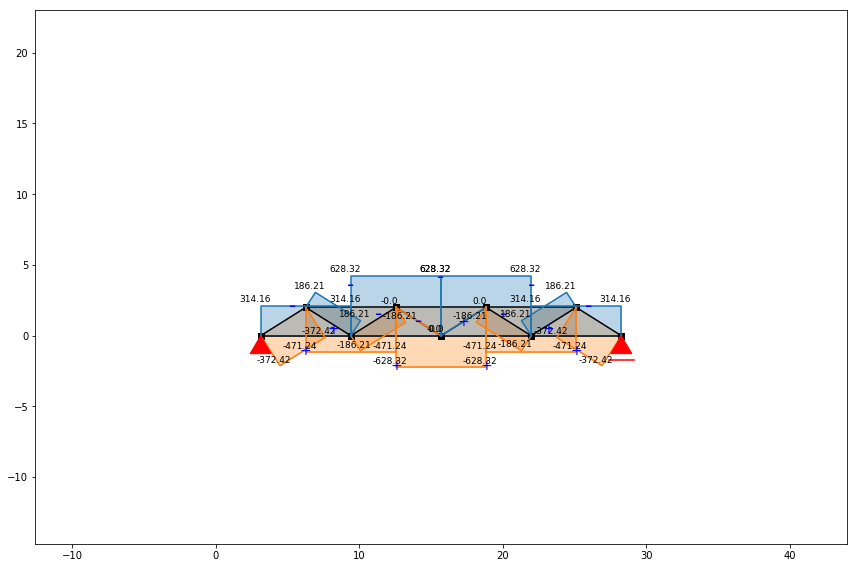

  • axial force lines, shear force lines
  • displacement lines
  • hinged supports, fixed supports, hinged elements
  • spring supports, rotational springs
  • q-load in elements direction, point loads in global x, y directions on nodes, dead load, q-loads in global y direction, load cases and load combinations
  • non-linear nodes
  • geometrical non linearity
  • generic type of section - rectangle and circle
  • EU, US, UK steel section database

Project Samples

Project Activity

See All Activity >

License

GNU General Public License version 3.0 (GPLv3)
