Liquid PCB

Liquid PCB is a Computer Aided Design (CAD) application for designing Printed Circuit Boards. It is unlike any PCB CAD package you have used before. It has innovative user interface, and lets you create freeform tracks without any straight lines.

Project Samples

First screen. Quick file controls, plus recent docs and help

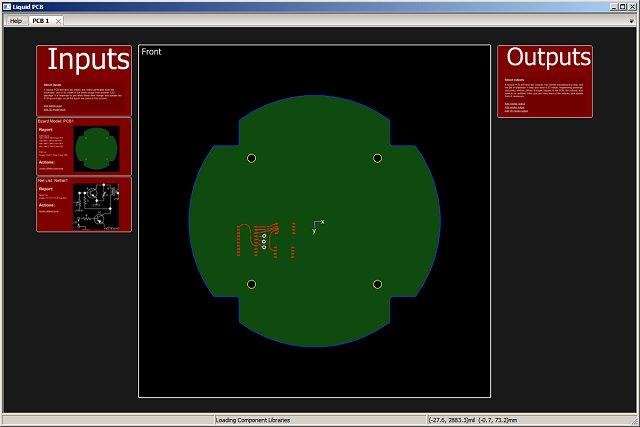

Editing a PCB. The hex menu is also visible
