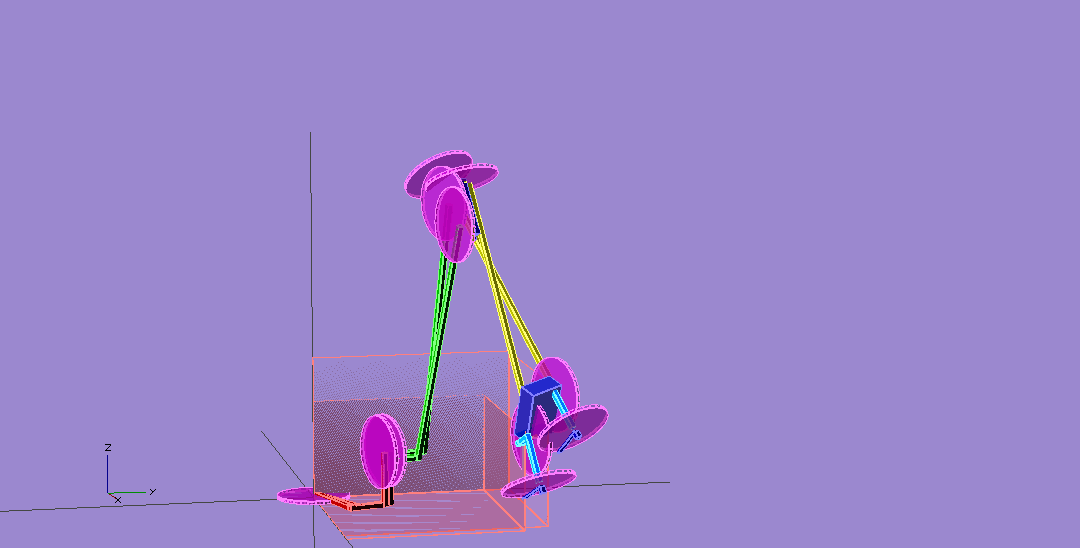

The gMOP3D version 0.0.1 software is a Manipulator or Industrial Robots
MOtion Path 3D simulation and animation system base on gnu.
This software only do ari thmetic and calculating the path.
It depends the OpenSCAD environment for simuation and animation of motion.
You can use it simulating X Y Z coordinate CNC with out G code.
It maybe use to axle running one straight line, as this straight path
as the CNC linear motion system.
This is the first software of me, so it may have alots of mistakes of code
or others application problem, email to me: bywetech@foxmail.com
Please reads OpenSCAD Manual at firstly.
There have two parts of model build.
First is build Manipulator(Industrial Robotic arm) axle rotate motion model.
This have writed in source code, you can changing datas in gmp16.h.
Second, terminal path model.
The first version only support cube, cubic model, it support
1, translate, means cube path model 's position.
2, rotate, cube can
