eCScope

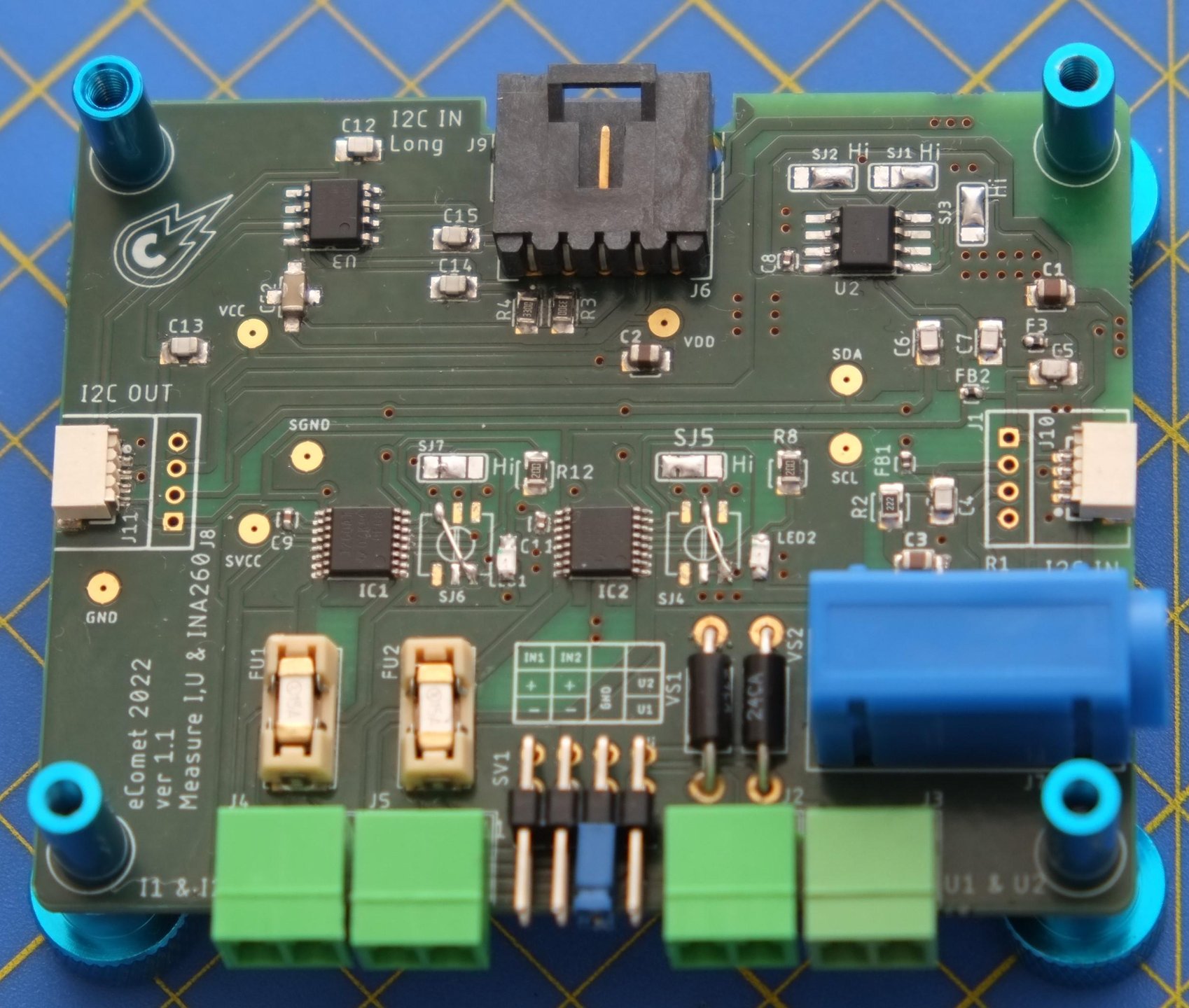

Freeware software for Raspberry PI 4B+ using GPIO and I2C connections with a hardware board with a 30 cm I2C cable (seed or qwicc) or 2m (proprietary eComet). Hardware will be available soon at http://electromaker.io. main features: max 150s measurement time, load measurement data to CSV file, measurement calibration, parallel measurement of 4 values, scale zoom in out, and move at X and Y axes
For news and updates see twitter page.

Features

Raspberry PI 4+
I2C qwicc, seed, custom
callibration
Current&Voltage with for two IC's (INA260)
Max 15A Current
Max 24V Voltage
150s measure time
Remote management
4 multiple measurements
Free Software & Low price for Hardware

Project Samples

Project Activity

See All Activity >

License

GNU General Public License version 3.0 (GPLv3)

Follow eCScope

eCScope Web Site

Other Useful Business Software

AI-powered service management for IT and enterprise teams

Enterprise-grade ITSM, for every business

Give your IT, operations, and business teams the ability to deliver exceptional services—without the complexity. Maximize operational efficiency with refreshingly simple, AI-powered Freshservice.

Try it Free

Rate This Project

User Reviews

Be the first to post a review of eCScope!

Additional Project Details

Operating Systems

Linux

User Interface

GTK+

Programming Language

Free Pascal

Related Categories

Free Pascal Scientific Engineering, Free Pascal Raspberry Pi Software

Registered

2022-10-01
