Concyl computes the stress state for a system of concentric cylinders under combined pressure and thermal loading. The program includes a plotting interface to Excel, a design optimizater, and detailed instructions with verification samples.

Features

  • Closed form exact solution for system of concentric cylinders
  • Handles up to 99 cylinders
  • Generalized plane strain or plane stress
  • Up to 99 separate isotropic materials
  • Supports fully incompressible materials
  • Includes internal and external pressure, thermal, and axial strain loading
  • Unique stress free temperature for each cylinder
  • Excel plotting interface
  • Parameter optimization
  • Command line interface
  • Scripted mode for batch runs
  • Outputs all solution quantities including stresses, strains, and energy.
  • More accurate and faster than finite element solutions
  • Online help at http://www.tobynorris.com/work/prog/cpp/mfc/concyl_hlp

Project Samples

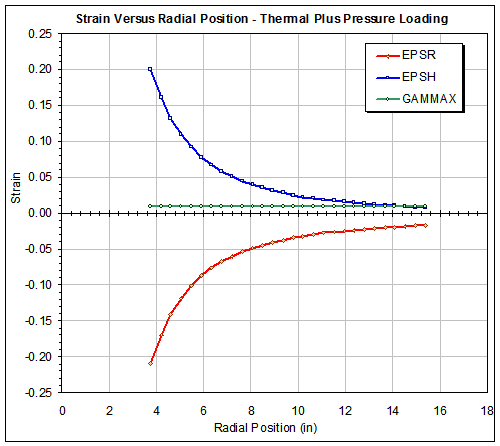

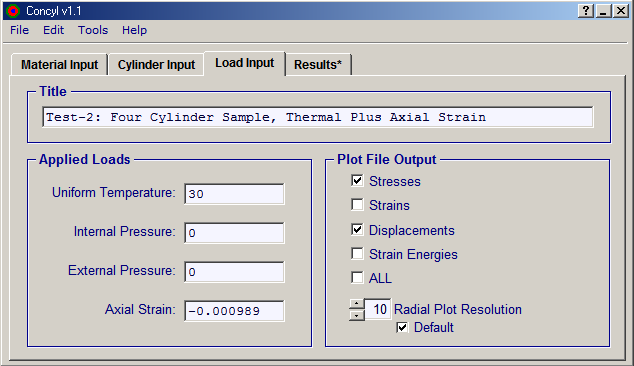

Sample Problem Sample Output, Strain Versus Radius GUI, Cylinder Input GUI, Load Input GUI, Optimizer Input Sample Output, Interface Pressure Versus Temperature
