Automalator

Flowcharts not telling you what you want to know about some C source code? Try a State Dependency map!
Every C source file is an implemention of a state machine. Implicit in the definition of a state machine is a network of dependencies between the states.
The Automalator
* deconstructs the C code into the core state machine
* collates the transactions into the dependency net
* generates a diagram-format file with the states and dependencies as the nodes and edges.

Pre-requisites

* Perl - tested with versions 5.12.3, 5.14.2 and 5.20.2, Windows, Linux and MAC

* Get the Automalator by downloading the zip, or checking out or exporting the SVN trunk
* copy the source code of interest into "project.c"

* windows - double-click "src2map.bat"
* linux & MAC - navigate the command line to the "project" folder, then run "src2map.sh"

* open "project.gml" file with diagramming software.

Features

visualize C code with diagramming software such as Gephi, YEd, or Tulip.
analyze C code programmatically with a database manager such as MS Access
expedite code comprehension
tighten or refactor an implentation
find all the supporting states for a feature
simplify the implementation while maintaining boundary behaviour.
sample deconstructions of a file from GCC, Linux wireless and Subversion
reduce bloat

Project Samples

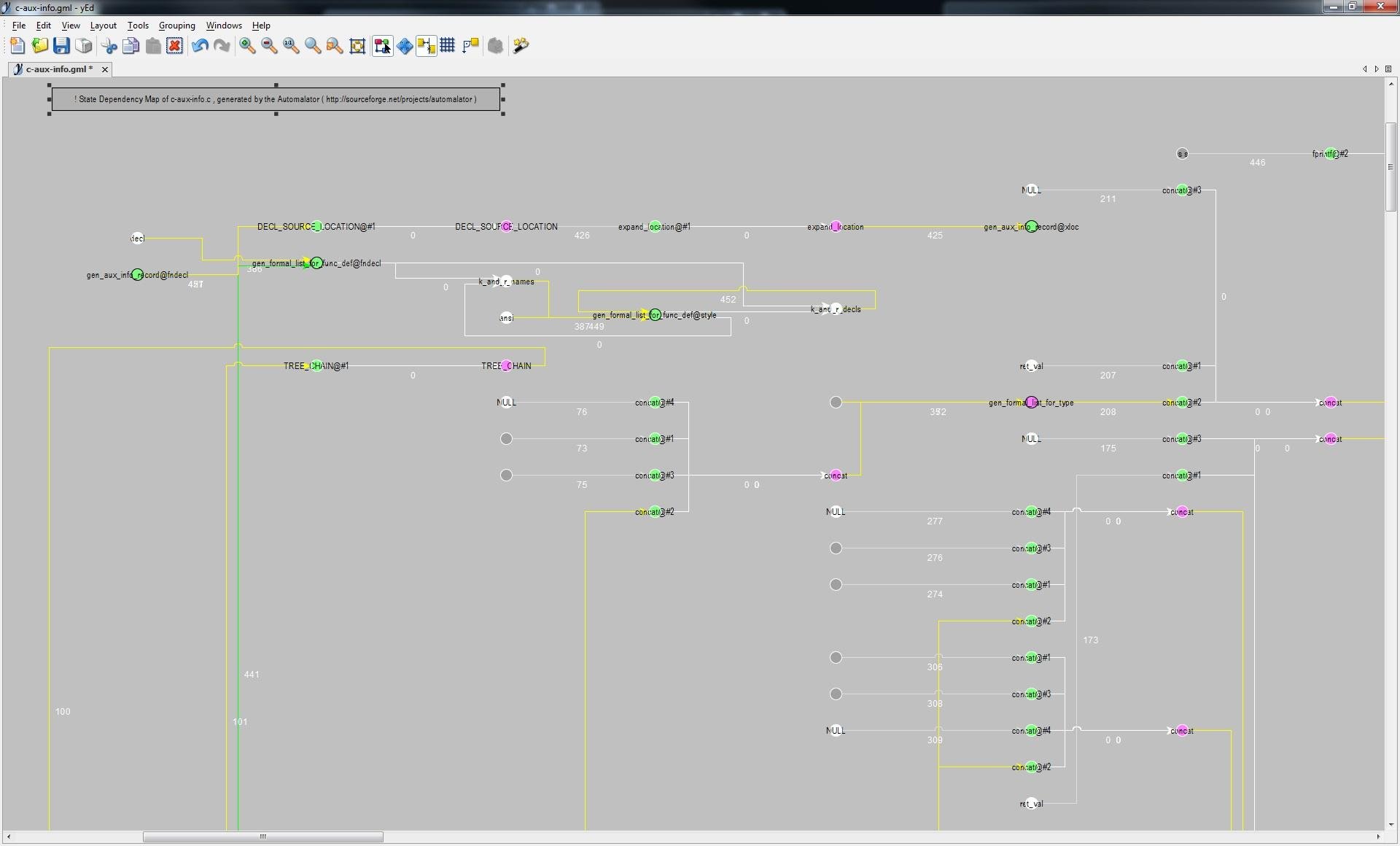

partial state dependency map from gcc sample deconstruction

partial state dependency map from mac80211 deconstruction sample

full state dependency map from mac80211 deconstruction sample

partial state dependency map fron subversion deconstruction sample

Project Activity

See All Activity >

License

GNU General Public License version 3.0 (GPLv3)
