Print Account Delegation of Vesting
Repositories
SteemRubyTutorial
All examples from this tutorial can be found as fully functional scripts on GitHub:
- SteemRubyTutorial
- steem-api sample code: Steem-Dump-Vesting.rb
- radiator sample code: Steem-Print-Vesting.rb.
steem-ruby
- Project Name: Steem Ruby
- Repository: https://github.com/steemit/steem-ruby
- Official Documentation: https://github.com/steemit/steem-ruby
- Official Tutorial: N/A
radiator
- Project Name: Radiator
- Repository: https://github.com/inertia186/radiator
- Official Documentation: https://www.rubydoc.info/gems/radiator
- Official Tutorial: https://developers.steem.io/tutorials-ruby/getting_started
What Will I Learn?
This tutorial shows how to interact with the Steem blockchain and Steem database using Ruby to access an accounts incoming and outgoing vestings.
When using Ruby you have two APIs available to chose: steem-api and radiator which differentiates in how return values and errors are handled:
- steem-api uses closures and exceptions and provides low level computer readable data.
- radiator uses classic function return values and provides high level human readable data.
Since both APIs have advantages and disadvantages sample code for both APIs will be provided so the reader ca decide which is more suitable.
Requirements
Basic knowledge of Ruby programming is needed. It is necessary to install at least Ruby 2.5 as well as the following ruby gems:
gem install bundler
gem install colorize
gem install contracts
gem install steem-ruby
gem install radiator
Note: Both steem-ruby and radiator provide a file called steem.rb. This means that:
- When both APIs are installed ruby must be told which one to use.
- Both APIs can't be used in the same script.
If there is anything not clear you can ask in the comments.
Difficulty
For reader with programming experience this tutorial is medium level.
Tutorial Contents
There are three ways to get the list of delegations using either the database API or the condenser API.
Note: The method Vesting.print_list is part of the sample code further down. It pretty prints a list of vestings.
find_vesting_delegations
find_vesting_delegations is the simplest method. It will return the first 1000 delegations from one account. Suitable for accounts with less then 1000 delegations.
_vesting = Database_Api.find_vesting_delegations(account: account)
Vesting.print_list _vesting.result.delegations
get_vesting_delegations
get_vesting_delegations returns a subset of an accounts delegation. This is helpful for accounts with more then a thousand delegations like steem. The 2nd parameter is the first delegatee to return. The 3nd parameter is maximum amount results to return. Must be less then 1000.
The loop needed is pretty complicated as the last element on each iteration is duplicated as first element of the next iteration.
# empty string denotes start of list
_previous_delegatee = ""
loop do
# get the next 1000 items.
_vesting = Condenser_Api.get_vesting_delegations(account, _previous_delegatee, 1000)
# no elements found, end loop now. This only
# happens when the account doesn't exist.
break if _vesting.result.length == 0
# get and remove the last element. The last element
# meeds to be removed as it will be duplicated
# as first element in the next iteration.
_last_vest = Vesting.new _vesting.result.pop
# check of the delegatee of the current last element
# is the same as the last element of the previous
# iteration. If this happens we have reached the
# end of the list
if _previous_delegatee == _last_vest.delegatee then
# In the last itteration there will also
# be only one element which we need to print.
puts _last_vest.to_ansi_s
break
else
# Print the list.
Vesting.print_list _vesting.result
# remember the delegatee for the next integration.
_previous_delegatee = _last_vest.delegatee
end
end
list_vesting_delegations
get_vesting_delegations returns the delegations of multiple accounts at once. Useful if you want to iterate over all existing delegations. The start parameter takes the delegator / delegatee pair to start, limit is the amount of results (less then 1000) and order is always "by_delegation".
# two empty strings denotes start of list
_previous_end = ["" , ""]
loop do
# get the next 1000 items.
_vesting = Database_Api.list_vesting_delegations(start: _previous_end, limit: 1000, order: "by_delegation")
# no elements found, end loop now. This only
# happens when the delegator / delegatee pair
# used as start marker doesn't exist.
break if _vesting == nil || _vesting.result.length == 0
# get the delegator / delegatee pair
# of the last element
_last_vest = Vesting.new _vesting.result.delegations.last
_current_end = [_last_vest.delegator, _last_vest.delegatee]
# check of the delegator / delegatee pair of the
# current last element is the same as the last
# element of the previous iteration. If this
# happens we have reached the end of the list
if _previous_end == _current_end then
# In the last iteration there will also
# be only one element which we need to print.
puts _last_vest.to_ansi_s
break
else
# Print the list.
Vesting.print_list(_vesting.result.delegations, accounts)
# remember the delegator / delegatee pair for
# the next iteration.
_previous_end = _current_end
end
end
Note: As of writing radiator doesn't supply an implementation for get_vesting_delegations.
Implementation using radiator
With the radiator implementation the access of delegation from a given list of accounts is demonstrated.
A class to hold a vesting delegation values. The vesting
holds the following values
- id [Number] ID unique to all delegations.
- delegator [String] Account name of the account who delegates
- delegatee [String] Account name of the account who is delegates to
- vesting_shares [Amount] the actual amount in VESTS
-
min_delegation_time [Time] Start of delegation
:::ruby
class Vesting < Radiator::Type::Serializer
include Contracts::Core
include Contracts::Builtinattr_reader :id, :delegator, :delegatee, :vesting_shares, :min_delegation_time
:::ruby
Create a new instance from the data returned by from find_vesting_delegations, get_vesting_delegations or list_vesting_delegations.
Contract HashOf[String => Or[String, Num, HashOf[String => Or[String, Num]] ]] => nil
def initialize(value)
super(:id, value)
@id = value.id
@delegator = value.delegator
@delegatee = value.delegatee
@vesting_shares = Amount.new (value.vesting_shares)
@min_delegation_time = Time.strptime(value.min_delegation_time + ":Z" , "%Y-%m-%dT%H:%M:%S:%Z")
return
end
Create a colourised string from the instance. The vote percentages are multiplied with 100 and are colorised (positive values are printed in green, negative values in red and zero votes (yes they exist) are shown in grey), for improved human readability.
Contract None => String
def to_ansi_s
# All the magic happens in the `%` operators which
# calls sprintf which in turn formats the string.
return (
"%1$10d | " +
"%2$-16s ⇒ " +
"%3$-16s | " +
"%4$-68s | " +
"%5$20s | ") % [
@id,
@delegator,
@delegatee,
@vesting_shares.to_ansi_s,
@min_delegation_time.strftime("%Y-%m-%d %H:%M:%S")
]
end
Print a list a vesting values:
- Loop over all vesting.
- convert the vote JSON object into the ruby
Vestingclass. -
print as ansi strings.
:::ruby
Contract ArrayOf[HashOf[String => Or[String, Num, HashOf[String => Or[String, Num]] ]] ] => nil
def self.print_list (vesting)
vesting.each do |vest|
_vest = Vesting.new vestputs _vest.to_ansi_s end returnend
Print the vesting the given account makes:
Contract String => nil
def self.print_account (account)
puts ("-----------|------------------+------------------+--------------------------------------------------------------------+----------------------+")
# `get_vesting_delegations` returns a subset of an
# accounts delegation. This is helpful for accounts
# with more then a thousand delegations like steem.
# The 2nd parameter is the first delegatee to
# return. The 3rd parameter is maximum amount results
# to return. Must be less then 1000.
#
# The loop needed is pretty complicated as the last
# element on each iteration is duplicated as first
# element of the next iteration.
# empty string denotes start of list
_previous_delegatee = ""
loop do
# get the next 1000 items.
_vesting = Condenser_Api.get_vesting_delegations(account, _previous_delegatee, 1000)
# no elements found, end loop now. This only
# happens when the account doesn't exist.
break if _vesting.result.length == 0
# get and remove the last element. The last element
# meeds to be removed as it will be dupplicated
# as firt element in the next iteration.
_last_vest = Vesting.new _vesting.result.pop
# check of the delegatee of the current last element
# is the same as the last element of the previous
# iteration. If this happens we have reached the
# end of the list
if _previous_delegatee == _last_vest.delegatee then
# In the last iteration there will also
# be only one element which we need to print.
puts _last_vest.to_ansi_s
break
else
# Print the list.
Vesting.print_list _vesting.result
# remember the delegatee for the next iteration.
_previous_delegatee = _last_vest.delegatee
end
end
return
end
end
Initialise access to Condenser and Steem database as well as set the conversion values used by the Amount class.
begin
# create instance to the steem condenser API which
# will give us access to to the global properties and
# median history
Condenser_Api = Radiator::CondenserApi.new
# read the global properties and median history values
# and calculate the conversion Rate for steem to SBD
# We use the Amount class from Part 2 to convert the
# string values into amounts.
_median_history_price = Condenser_Api.get_current_median_history_price.result
_base = Amount.new _median_history_price.base
_quote = Amount.new _median_history_price.quote
SBD_Median_Price = _base.to_f / _quote.to_f
_global_properties = Condenser_Api.get_dynamic_global_properties.result
_total_vesting_fund_steem = Amount.new _global_properties.total_vesting_fund_steem
_total_vesting_shares = Amount.new _global_properties.total_vesting_shares
Conversion_Rate_Vests = _total_vesting_fund_steem.to_f / _total_vesting_shares.to_f
# create instance to the steem database API
Database_Api = Radiator::DatabaseApi.new
rescue => error
# I am using `Kernel::abort` so the script ends when
# data can't be loaded
Kernel::abort("Error reading global properties:\n".red + error.to_s)
end
Read a list of accounts from the command line and print
the vesting delegation for each account.
if ARGV.length == 0 then
puts "
Steem-Dump-Accounts — Dump account infos from Steem database
Usage:
Steem-Dump-Accounts account_name …
"
else
# read arguments from command line
Account_Names = ARGV
puts (" id | delegator | delegatee | vesting shares | min delegation time |")
Account_Names.each do |account|
Vesting.print_account account
end
end
Hint: Follow this link to Github for the complete script with comments and syntax highlighting : Steem-Print-Vesting.rb.

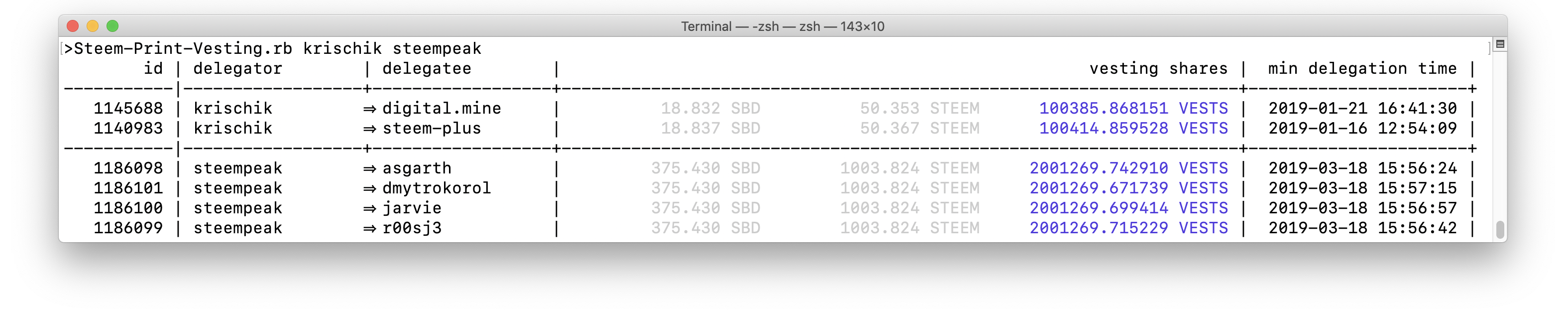

The output of the command (for my and the steampeak account) looks like this:
Implementation using steem-ruby
With the steem-ruby implementation the access to delegation from and to a given list of account makes is demonstrated. This is a very time consuming process as we need to iterate over every delegation of the database. Run time can easily exceed an hour.
Again a class is used to hold the date. Note that Only the differences to radiator implementation is shown.
class Vesting < Steem::Type::BaseType
Since we need to use list_vesting_delegations method which return all vestings currently stored the data is
filtered inside the loop.
This helper method will check if delegation is related to the given list of accounts either as delegator or delegatee.
Contract ArrayOf[String] => Bool
def is_accounts (accounts)
return (accounts.include? @delegator) || (accounts.include? @delegatee)
end
Prints all vesting values which are related to given list of accounts:
- Loop over all vesting.
- checks is vesting is related to the list of accounts
- convert the vote JSON object into the ruby
Vestingclass. -
print as ansi strings.
:::ruby
Contract ArrayOf[HashOf[String => Or[String, Num, HashOf[String => Or[String, Num]] ]] ], ArrayOf[String] => nil
def self.print_list (vesting, accounts)
vesting.each do |vest|
_vest = Vesting.new vestif _vest.is_accounts accounts then puts _vest.to_ansi_s end end returnend
Fetches all the vestings form the database and prints those who are related to the given list of accounts. Fetching all delegation takes quite a long time and there is a good change that there will be a network error before the operation finishes.
For this a crude hack which skips over the steem account is applied. Even with skipping over the steem account the operation can take half an hour. To keep the user informed a progress indicator is added aw well.
Contract ArrayOf[String] => nil
def self.print_accounts (accounts)
puts ("-----------|------------------+------------------+--------------------------------------------------------------------+----------------------+")
# `get_vesting_delegations` returns the delegations
# of multiple accounts at once. Useful if you want
# to iterate over all existing delegations. It's also
# the only way to find delegatees.
#
# The start parameter takes the delegator / delegatee
# pair to start the search, limit is the maximum amount
# of results to be returned (less then 1000) and order
# is always "by_delegation".
#
# The loop needed is pretty complicated as the last
# element on each iteration is duplicated as first
# element of the next iteration.
# empty strings denotes start of list
_previous_end = ["", ""]
loop do
# get the next 1000 items.
_vesting = Database_Api.list_vesting_delegations(start: _previous_end, limit: 10, order: "by_delegation")
# no elements found, end loop now. This only
# happens when the initial delegator / delegatee
# pair doesn't exist.
break if _vesting == nil || _vesting.result.length == 0
# get the delegator / delegatee pair of the last
# element
_last_vest = Vesting.new _vesting.result.delegations.pop
_current_end = [_last_vest.delegator, _last_vest.delegatee]
# Delete the progress indicator.
print "\e[1K\r"
# check of the delegatee of the current last element
# is the same as the last element of the previous
# iteration. If this happens we have reached the
# end of the list
if _previous_end == _current_end then
# In the last iteration there will also
# be only one element which we need to print.
if _last_vest.is_accounts accounts then
puts _last_vest.to_ansi_s
end
break
else
# Print the list.
if _previous_end[0] != "steem" && _current_end[0] == "steem" then
# The large majority of delegations are done
# by the steem account. Not only will it
# take more then an hour to iterate over the
# steem delegations there is also a very
# high likelihood of a network error
# preventing the iteration from finishing.
# For this we skip over the steem account.
_previous_end = ["steem", "zzzzzzj"]
else
# remember the delegator / delegatee pair for
# the next iteration.
_previous_end = _current_end
end
end
# Print the current position of the iteration as
# progress indicator for the user.
print (
"%1$10d | " +
"%2$-16s ⇒ " +
"%3$-16s ") % [
_last_vest.id,
_last_vest.delegator,
_last_vest.delegatee]
end
return
end
end
Since all delegations from the database are read and this is quite a time consuming operation it would be wasteful to make one call for each account.
Instead the list of accounts is passed into the print method to filter all accounts at once.
The disadvantage being that the printed data isn't sorted by account.
if ARGV.length == 0 then
puts "
Steem-Dump-Accounts — Dump account infos from Steem database
Usage:
Steem-Dump-Accounts account_name …
"
else
# read arguments from command line
Account_Names = ARGV
puts (" id | delegator | delegatee | vesting shares | min delegation time |")
Vesting.print_accounts Account_Names
end
Hint: Follow this link to Github for the complete script with comments and syntax highlighting: Steem-Dump-Vesting.rb.

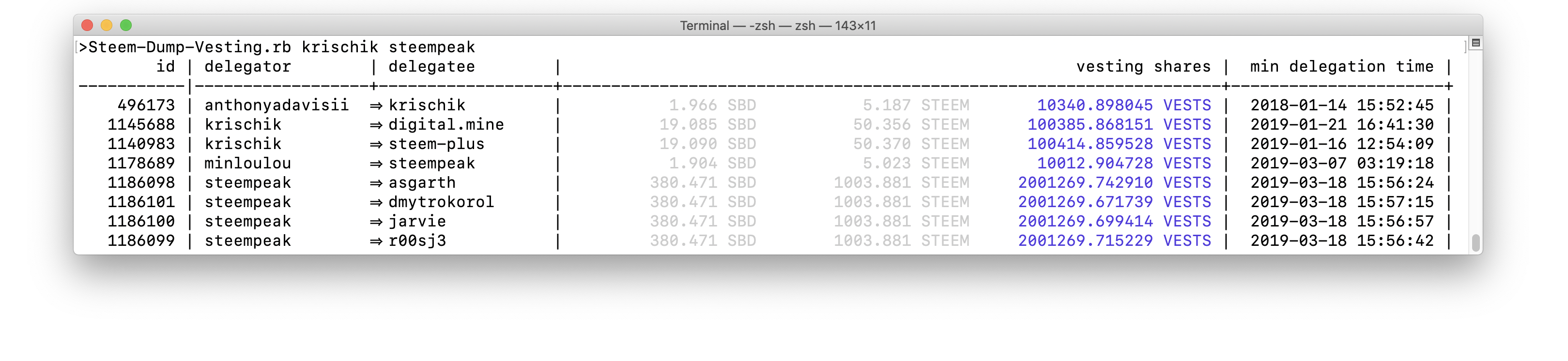

The output of the command (for my and the steampeak account) looks like this:
