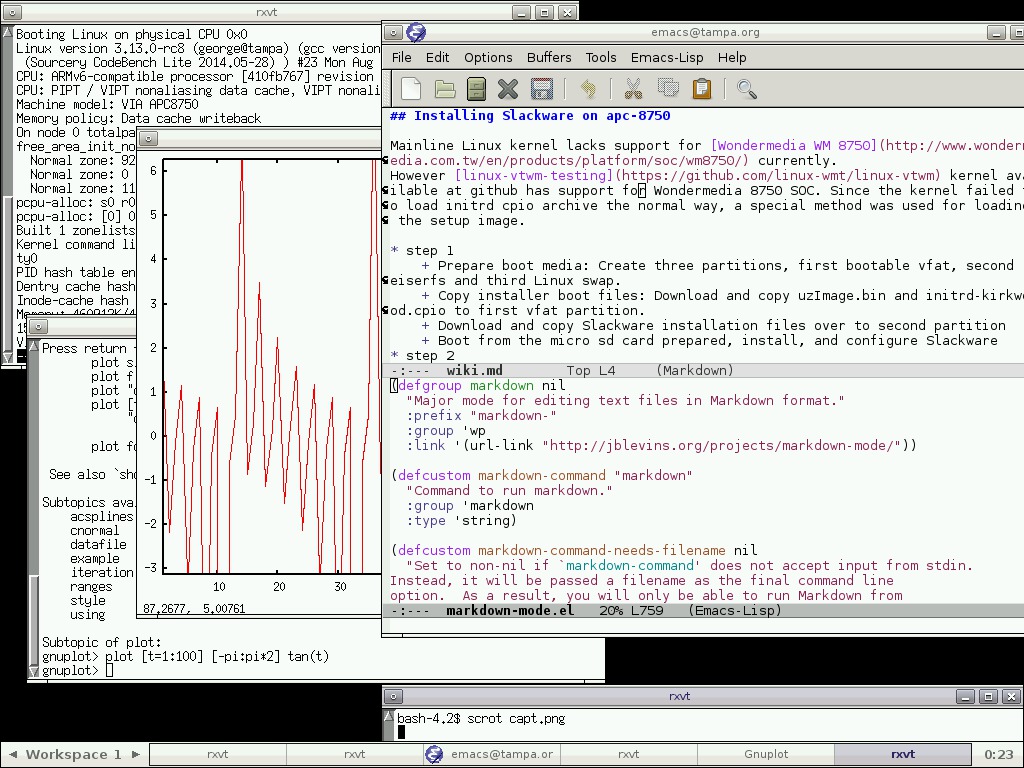

Screenshot, 1024x768 == Screenshot, 800x600
APC 8750 Product page == Buy it from APC == Visit the APC Library
Mainline Linux kernel lacks support for Wondermedia WM 8750 currently. However linux-vtwm-testing kernel available at github has support for Wondermedia 8750 SOC. Since the kernel failed to load initrd cpio archive the normal way, a special method was used for loading the Slackware setup image. ( Installer Kernel booting from embedded initramfs image creates a filesystem on ramdisk, extracts Slackware setup initrd image and chroots to the filesystem on ramdisk ). Briefly, the steps followed in installing Slackware on APC 8750 are :
For this you need a custom built kernel and a initramfs image from Slackware for arm distribution - uinitrd-kirkwood.img.
Download and keep these ready.
You need at least three partitions, one vfat, one or more Linux partitions, and a Linux swap partition for this method of installation. Here is how the partitions I used look like under fdisk ran on host.
Disk /dev/sdc: 15.9 GB, 15931539456 bytes 64 heads, 32 sectors/track, 15193 cylinders, total 31116288 sectors Units = sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Disk identifier: 0x00000000 Device Boot Start End Blocks Id System /dev/sdc1 * 2048 206847 102400 c W95 FAT32 (LBA) /dev/sdc2 206848 28878847 14336000 83 Linux /dev/sdc3 28878848 31116287 1118720 82 Linux swap
Create a slackware14.1 directory in the reiserfs partition of the micro sd card.
Copy Slackware for arm distribution to the slackware14.1 directory, from http://arm.slackware.com/getslack/. Once the preparation is over,
sdc1:
/uzImage.bin
/initrd-kirkwood.cpio
sdc2:
/slackware14.1/
Now you are ready to boot from the new disk just prepared, and install Slackware from the pre mounted directory under /mnt/slackware14.1/slackware ( which is automounted as the selection for target is done ). Put the newly prepared micro sd card in the slot and reboot APC-8750. Once you get the Slackware login prompt, proceed for installation as usual.
For X Windows, use a lightweight window manager like Fluxbox.
After the installation is done, you need to replace the kernel uzImage.bin with a new one, this time with no initramfs_data.cpio.gz, and CONFIG_CMDLINE= changed for booting from partition 2:
CONFIG_CMDLINE=" mem=460M root=/dev/mmcblk0p2 rootwait nonitrd ro console=tty0"
CONFIG_CMDLINE_FORCE=y
For this, download one of
and copy over to the first partition ( bootable vfat one ).
Once Slackware is installed, and the new uzImage.bin is copied over,
sdc1:
/uzImage.bin
/initrd-kirkwood.cpio => not required anymore
sdc2:
/bin
/boot
/cdrom
/dev/
/etc/
/home/
/proc/
/slackware14.1 => not required anymore
/usr/
/var/
You may remove files which are not required anymore, and free up some space. Once that is done, reboot APC-8750 to get Slackware up and running.
Please also refer to build.sh script used to help the build procedure.
I used linux-vtwm-testing.
Zipfile you download from the site may cause problem when extracting on Linux. In my case couple of files were missing. One option is to use p7zip or other unzip program instead of the default zip utility in Slackware. You may also get a tar.gz file using:
wget --no-check-certificate \
https://github.com/linux-wmt/linux-vtwm/archive/testing.tar.gz
Please refer to the link config.slackinst.vga or config.slackinst.ttyWMT0 for the config file which was used.
This method also require a small initramfs image prepared from the boot media available at apc.io library. Download it from here initramfs_data.cpio.gz
or
Use the following init scrip with a stripped down version of initrd.gz in apc-firmware-v1.0.2 from apc.io library.
init:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 |
|
Commands to build initramfs_data.cpio.gz:
gunzip initrd.gz
mkdir initramfs_data
mount -o loop initrd initramfs_data
# create initramfs_data/init as shown above
sh build.sh init
chmod a+x initramfs_data/init
sync
(cd initramfs_data ; find . | cpio -o -H newc | gzip > ../initramfs_data.cpio.gz )
Copy initramfs_data.cpio.gz cpio archive to $KERNEL_SRC/usr area.
Please note that the kernel uses a CONFIG_CMDLINE=
for VGA:
CONFIG_CMDLINE=" mem=440M console=tty0 mbtotal=52M"
CONFIG_CMDLINE_FORCE=y
for serial:
CONFIG_CMDLINE=" mem=440M console=ttyWMT0,115200n8 mbtotal=52M"
CONFIG_CMDLINE_FORCE=y
kernel is compiled on the host, using a cross compiler Sourcery CodeBench Lite 2014.05-28 for arm. For mkimage tool refer to Kernel and Bootloader link at apc-io page at github.
export OBJ=/src/apc.io/obj.testing
export KERNEL_SRC=/src/apc.io/linux-vtwm-testing
export PATH=~/apc.io/apc-8750-master/u-boot/tools:$PATH
export PATH=/opt/local/arm/arm-2014.05/bin:$PATH
cp config.slackinst.vga $OBJ/.config
cp initramfs_data.cpio.gz $KERNEL_SRC/usr
make -C $KERNEL_SRC O=$OBJ ARCH=arm CROSS_COMPILE=arm-none-eabi- zImage -j 3
mv $OBJ/arch/arm/boot/zImage $1/$2/ ;
make -C $KERNEL_SRC O=$OBJ ARCH=arm CROSS_COMPILE=arm-none-eabi- dtbs
cat $1/$2/zImage $OBJ/arch/arm/boot/dts/wm8750-apc8750.dtb > $1/$2/zImage_w_dtb
mkimage -A arm -O linux -T kernel -C none -a 0x8000 \
-e 0x8000 -n "My Linux" -d $1/$2/zImage_w_dtb $1/$2/uzImage.bin
wget -c http://ftp.arm.slackware.com/slackwarearm/slackwarearm-14.1/isolinux/uinitrd-kirkwood.img
dd if=./uinitrd-kirkwood.img bs=64 skip=1 of=initrd-kirkwood.cpio.gz
gunzip initrd-kirkwood.cpio.gz
Please refer to the link config.slackboot.vga or config.slackboot.ttyWMT0 for the config file which was used. Download and copy this file as .config in $OBJ area before starting the build
export OBJ=/src/apc.io/obj.testing
export KERNEL_SRC=/src/apc.io/linux-vtwm-testing
export PATH=~/apc.io/apc-8750-master/u-boot/tools:$PATH
export PATH=/opt/local/arm/arm-2014.05/bin:$PATH
cp config.slackboot.vga $OBJ/.config
rm $KERNEL_SRC/usr/initramfs_data.cpio.g
make -C $KERNEL_SRC O=$OBJ ARCH=arm CROSS_COMPILE=arm-none-eabi- zImage -j 3
mv $OBJ/arch/arm/boot/zImage $1/$2/ ;
make -C $KERNEL_SRC O=$OBJ ARCH=arm CROSS_COMPILE=arm-none-eabi- dtbs
cat $1/$2/zImage $OBJ/arch/arm/boot/dts/wm8750-apc8750.dtb > $1/$2/zImage_w_dtb
mkimage -A arm -O linux -T kernel -C none -a 0x8000 \
-e 0x8000 -n "My Linux" -d $1/$2/zImage_w_dtb $1/$2/uzImage.bin
Look here for some performance test results here: UnixBench results, random tests, x11perf results.
From Slackware-14.1 boot messages on tty0:
Linux version 3.13.0-rc8 (ahoh@tampa) (gcc version 4.8.3 20140320 (prerelease) (Sourcery CodeBench Lite 2014.05-28) ) #23 Mon Aug 4 07:40:48 IST 2014
Kernel command line: mem=460M root=/dev/mmcblk0p2 rootwait nonitrd ro console=tty0
From original boot messages on ttyS0:
Kernel command line: mem=460M root=/dev/mtdblock11 noinitrd rootfstype=yaffs2 rw console=ttyS0,115200n8 mbtotal=52M init=/init
Linux version 2.6.32.9-default (root@Ryan-VM-Ubuntu) (gcc version 4.5.2 (Sourcery G++ Lite 2011.03-41) ) #1 Wed Dec 5 19:29:52 CST 2012
CPU: ARMv6-compatible processor [410fb767] revision 7 (ARMv7), cr=00c5387f
...
Memory: 460MB = 460MB total
Memory: 460288KB available (5188K code, 1069K data, 136K init, 0K highmem)
...
Creating 6 MTD partitions on "mtdsf device":
0x000000000000-0x000000d00000 : "filesystem-SF"
0x000000d00000-0x000000f80000 : "kernel-SF"
0x000000f80000-0x000000fd0000 : "u-boot-SF"
0x000000fd0000-0x000000fe0000 : "u-boot env. cfg. 1-SF"
0x000000fe0000-0x000000ff0000 : "u-boot env. cfg. 2-SF"
0x000000ff0000-0x000001000000 : "w-load-SF"
wmt sf controller initial ok
...
NAND device: Manufacturer ID: 0xec, Chip ID: 0xd59476 (Samsung K9GAG08U0F)
Bad block at 16
Bad block at 17
Bad block at 89
Bad block at 613
Bad block at 880
Bad block at 1583
WMT_nand: uboot no dynamic partitions defined, use default static
Creating 11 MTD partitions on "WMT.nand":
0x000000000000-0x000000100000 : "w-load-NAND"
0x000000100000-0x000000a00000 : "u-boot env. cfg. 1-NAND"
0x000000a00000-0x000001300000 : "u-boot-NAND"
0x000001300000-0x000001b00000 : "kernel-NAND"
0x000001b00000-0x000002100000 : "initrd-NAND"
0x000002100000-0x000012100000 : "filesystem-NAND"
0x000012100000-0x000012300000 : "u-boot-logo"
0x000012300000-0x000012700000 : "kernel-logo"
0x000012700000-0x000052700000 : "android-data"
0x000052700000-0x00005a700000 : "android-cache"
0x00005a700000-0x000080000000 : "LocalDisk"
nand initialised ok
...
VIA Networking Velocity Family Gigabit Ethernet Adapter Driver Ver. 1.14
...
eth0: VIA Networking Velocity Family Gigabit Ethernet Adapter
...
WMT_SOC: dai_name=i2s, codec_name=vt1603
WMT_SOC: single, wmt_i2s_rate=44100
...
VT1603 Audio Codec 0.10
wmt.audio.i2s = vt1603:f2:f2:f1:f1:100
...
