Screenshots

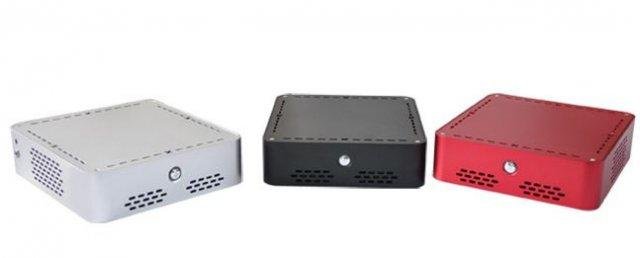

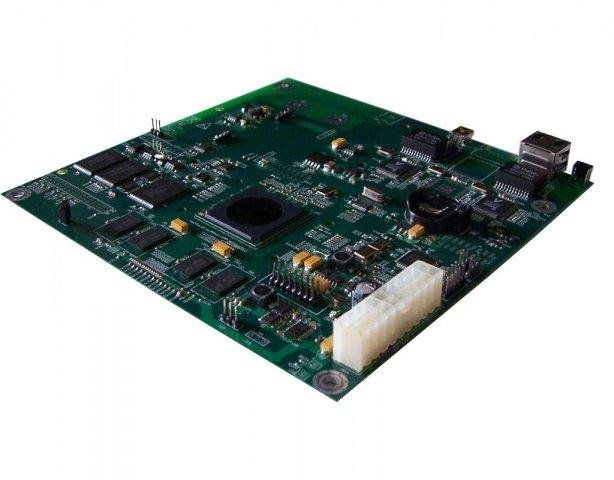

The PowerAST P3600 IPPBX platform board with mini-ITX 3 case

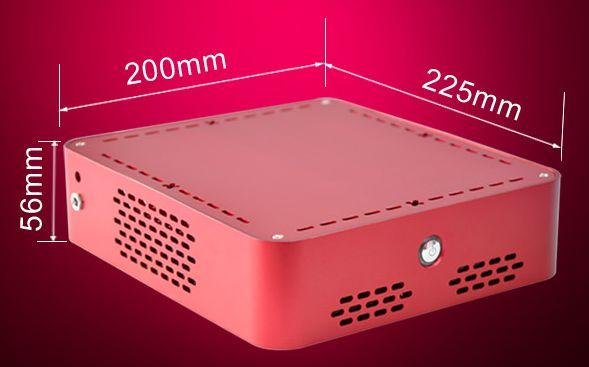

The PowerAST P3600 IPPBX platform board with mini-ITX case

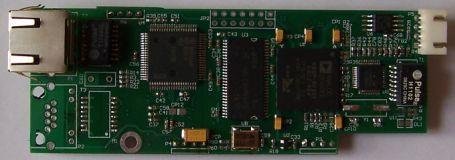

The PowerAST P3600 IPPBX E1/T1/J1 Module

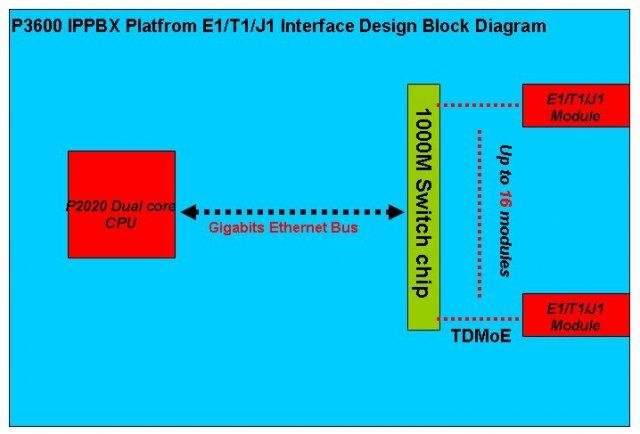

The PowerAST P3600 IPPBX E1/T1/J1 interface design diagram

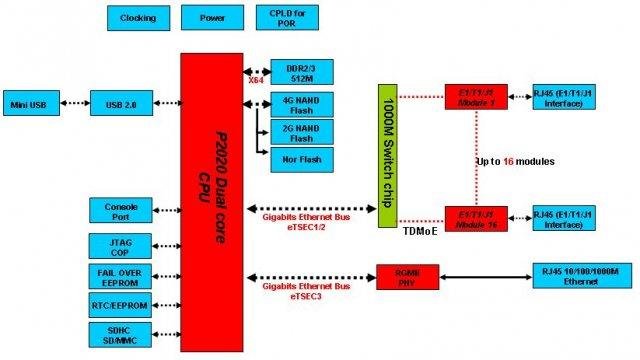

The PowerAST P3600 IPPBX platform high level design diagram

Description

World first open hardware/software designed embedded PowerPC dual core 1.2G CPU IPPBX, our target is make a top, stable and high density IPPBX, 1.2GHZ dual core CPU, 512M(up to 4G) DDR2/3 RAM, up to 16 E1/T1/J1(2 E1/T1/J1 modules by default)

PowerAST Web Site

Features

World first open hardware/software designed dual core PowerPC IPPBX, dual core 1.2GHZ CPU, 512M DDR2/3 supported, up to 6G NAND flash
1 10/100/1000 MHZ Ethernet ports, Up to 32G SD/MMC card, one USB2.0 OTG
supportted Asterisk/Freeswitch, Up to 16 E1/T1/J1 Digital cards
more than 500 packages ported and tested
