Description

Custom add-in (MDG technology) for Sparx Systems Enterprise Architect UML modelling tool to create architecture descriptions using TRAK http://sf.net/projects/trak

Provides:

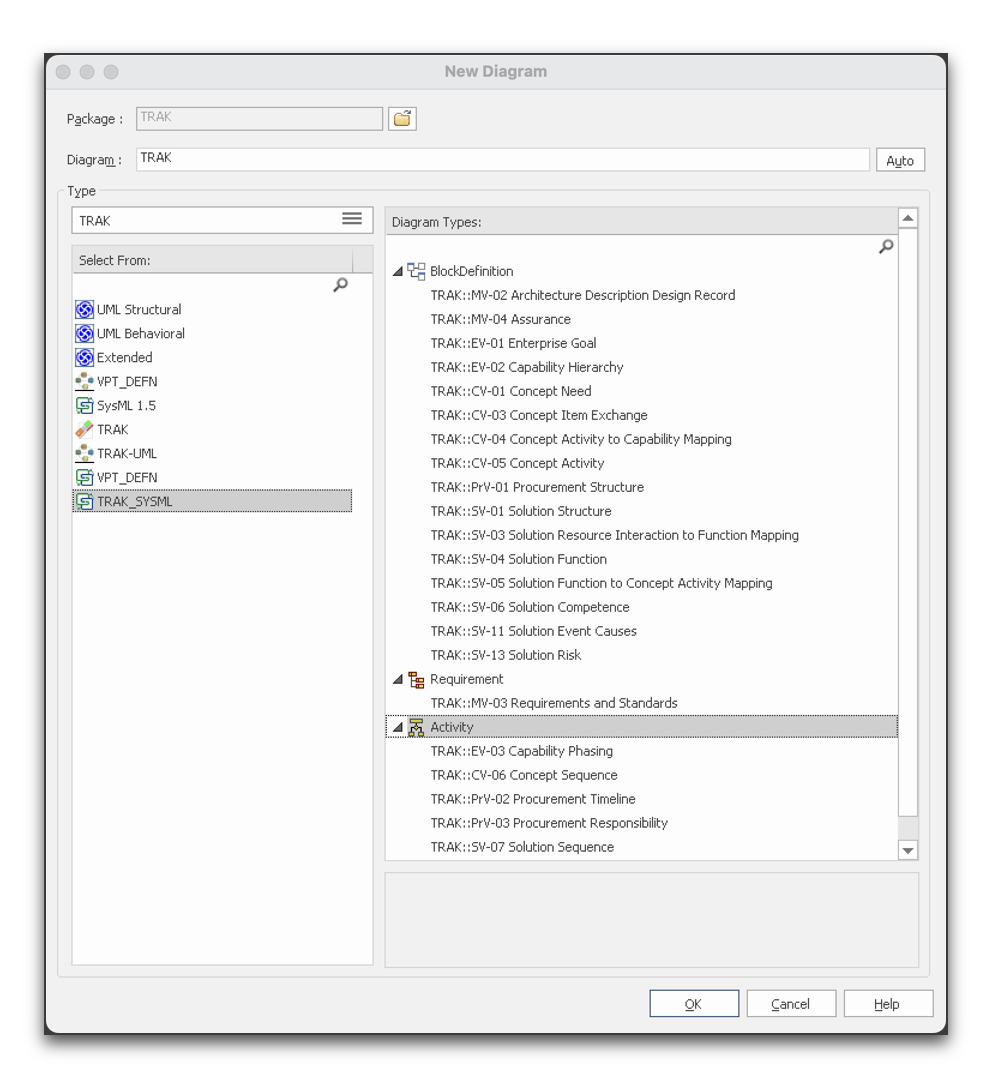

- the set of TRAK views that can be represented using UML. Each view display a custom toolbox palette with the objects and relationships that are needed for that TRAK view
- relationships can be made directly from the objects on a view using the Quicklink feature which presents the allowed relationship(s) by TRAK between the pair of objects selected
- a custom set of searches. When run these will list objects of a particular type (e.g. all Systems, all Enterprise Goals), potential quality problems (e.g. diagrams and objects without any description, objects not linked to any other), things of interest (e.g. open, closed concerns) and view-like results e.g. all structural relationships in the solution
- scripts to generate views
- model views to list objects meeting search criteria

Sparx' EA - MDG for TRAK Web Site

Features

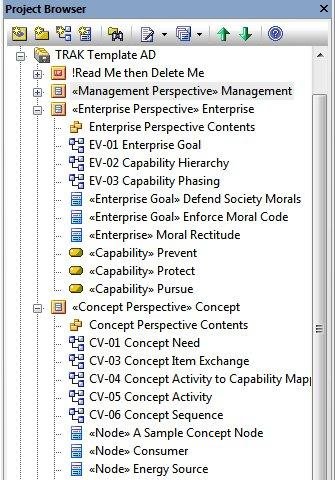

  • custom toolbox palettes tailored for each TRAK view
  • context-sensitive offering of correct relationships depending on stereotypes and view
  • context-sensitive creation of new element and correct relationship depending on single stereotype selected as start point
  • Quick View enables TRAK relationship and object to be created at same time to speed modelling
  • custom searches to create matrix views e.g. solution interface exchanges
  • implements TRAK for Sparx Systems Enterprise Architect (TRAK defined at http://sf.net/p/trak on Sourceforge)
  • model views for quality control (objects, diagrams added / modified, missing descriptions, 'solitons' (orphaned objects) across entire repository
  • models views to list all of each TRAK object type across entire repository
  • analysis model views (most highly connected elements - outgoing, incoming, all)
  • script - MV-01 Describe All AD Elements for EA Project
  • script - Selected Diagram - All Relationships
  • script - Selected Diagram - All Relationships (Subject - predicate - Object)
  • script - Selected Diagram - Partial CV-01
  • script - Selected Diagram - Partial CV-03
  • script - Selected Diagram - Partial SV-02
  • script - Selected Diagram - Structural Relationships
  • scripts output CSV to Output pane for cutting and pasting into documents as tables as well as producing tabular output in Sparx EA itself
