Allen Bradley (AB) PLC DF1 Protocol
by arj3090

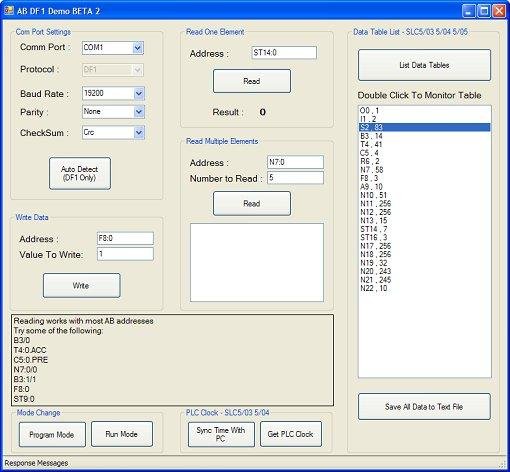

AB DF1 Protocol RS232 driver for Micrologix, SLC500, PLC 5. Written in Visual Basic 2005. Demo (ABUtilities) uses the protocol to read/write data tables, monitor tables, change mode, sync clock, save/rewrite data tables, up/download program. Free HMI
Project Feed
-
Allen Bradley PLC Training Video
In partnership with http://www.ronbeaufort.com , we have created a great series of training videos. View them at the web site mentioned, or go here : http://www.youtube.com/watch?v=zlsJxSK8tPE
-
Project Utilizing DF1 Driver
Allen Bradley SLC/Micrologix users check out the Advanced HMI project on sourceforge. It uses the latest version of the abdf1 driver and adds some really nice graphical oobjects. This allows you to build HMI's for your PLC without writing a single line ...
-
New Project Using DF1 Driver
See the AdvancedHMI project. It adds another level to this driver by adding drag and drop controls with eye catching graphics. Also see the video introduction: http://www.youtube.com/watch?v=P-E8NlUNiX4
-
abdf1 Release 2.0 file released: ABDF1Ver200BETASource.zip
New Features Upload/Download of programs Upload and save data, then write it back to PLC Data Graphing Support for ML1100, ML1200, ML1500
-
abdf1 Release 2.0 file released: ABDF1VER200Beta2.zip
New Features Upload/Download of programs Upload and save data, then write it back to PLC Data Graphing Support for ML1100, ML1200, ML1500
-
New Release Features
New major release will include program uploading and downloading. Data saving and writing back to PLC. And better support for ML1100, ML1200, and ML1500. Will be posted by March 7, 2008.
-
Video Walk Throughs
See these new videos that give step by step walkthrough for using this component to build a total free HMI for Allen Bradley SLC/Micro. http://www.youtube.com/watch?v=CiPzqc5jDlE http://www.youtube.com/watch?v=4A6tBXqv7So
-
abdf1 Release 1.0 file released: DF1ControlQuickStartR10.zip
-
abdf1 Release 1.0 file released: ABDF1SourceR10.zip
-
abdf1 Release 1.0 file released: ABUtilities10.zip
