Is there a GUI editor for graphviz charts?

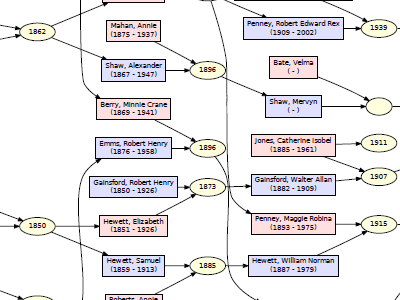

The report generator in Gramps does a pretty good job of optimising the layout

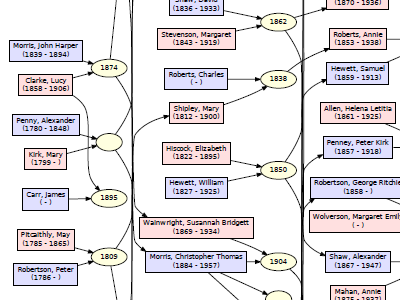

of large charts, and the sub-graph option can sometimes improve things.
However, for some of my charts, the layout could be improved quite a bit by
just reordering some nodes.  A graphical tool for this would be great - is
there such a thing?  (There are several different graphviz viewers, but I'm
after a layout editor.)

Apparently, it is possible to rearrange the layout by editing the .gv text
file.  Is there a description of how to do this anywhere?  From trying some
example charts, there doesn't seem to be a consistent correlation between the
sequence of the text file and the layout on the chart, so perhaps I'm missing
something here.
