Inkscape

Bugs item #1458675, was opened at 2006-03-26 13:13
Message generated for change (Settings changed) made by buliabyak
You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1458675&group_id=93438

Please note that this message will contain a full copy of the comment thread,
including the initial issue submission, for this request,
not just the latest update.
Category: None
Group: None
Status: Open
Resolution: Fixed
Priority: 9
Submitted By: James Kilfiger (zeimusu)
>Assigned to: Jon A. Cruz (joncruz)
Summary: Win XP svn: crash on start. div by zero in previewholder.cpp

Initial Comment:
Build from 0603251700 (from Daniel's thrice daily
builds) doesn't start on Windows XP. An Inkscape error
window shows "Inkscape has encountered an internal
error and will close now."

Gdb says:
$ gdb --symbols=inkscape.dbg inkscape.exe
GNU gdb 5.2.1
Copyright 2002 Free Software Foundation, Inc.
GDB is free software, covered by the GNU General Public
License, and you are
welcome to change it and/or distribute copies of it
under certain conditions.
Type "show copying" to see the conditions.
There is absolutely no warranty for GDB.  Type "show
warranty" for details.
This GDB was configured as "i686-pc-mingw32"...(no
debugging symbols found)...
(gdb) run
Starting program: c:\Documents and Settings\James\デス
クトップ\inkscape/inkscape
.exe

Program received signal SIGFPE, Arithmetic exception.
0x0072291a in _size_of_stack_reserve__ ()
(gdb) bt
#0  0x0072291a in _size_of_stack_reserve__ ()
Cannot access memory at address 0x200000
(gdb)

Other builds may be affected; I haven't tested.

----------------------------------------------------------------------

Comment By: James Kilfiger (zeimusu)
Date: 2006-04-13 19:28

Message:
Logged In: YES
user_id=597079

This should be fixed in SVN

----------------------------------------------------------------------

Comment By: James Kilfiger (zeimusu)
Date: 2006-03-30 17:49

Message:
Logged In: YES
user_id=597079

In preview holder req.height is calculated to be 46, then
req2.height is calculated at 48. int
h2=req.height/req2.height; so h2=0. This leads to the
division by zero. adding a line if (h2==0) {h2=1;} allows
inkscape to run. (though this may hide the real problem
which is req2.height > req.height)

----------------------------------------------------------------------

Comment By: James Kilfiger (zeimusu)
Date: 2006-03-30 17:46

Message:
Logged In: YES
user_id=597079

In preview holder req.height is calculated to be 46, then
req2.height is calculated at 48. int
h2=req.height/req2.height; so h2=0. This leads to the
division by zero. adding a line if (h2==0) {h2=1;} allows
inkscape to run. (though this may hide the real problem
which is req2.height > req.height)

----------------------------------------------------------------------

Comment By: James Kilfiger (zeimusu)
Date: 2006-03-29 18:03

Message:
Logged In: YES
user_id=597079

I think that it's a good guess that unicode filenames might
be implicated. But I get the same error when starting from a
"regular" directory. The summary might need to be changed
because starting from a directory with unicode isn't the
problem.

However I have got a nice lot of output from gdb, cut and
pasted below.

This was from a clean build I made myself (svn export ...)
from today.

[...]
gdb: kernel event for pid=3764 tid=3776
code=EXCEPTION_DEBUG_EVENT)
gdb: Target exception STATUS_INTEGER_DIVIDE_BY_ZERO at
0x007259ea

Program received signal SIGFPE, Arithmetic exception.
0x007259ea in Inkscape::UI::PreviewHolder::calcGridSize
(this=0x2dda9b0,
    thing=0x2ebf6f0, itemCount=138, width=@0x22f4a0,
height=@0x22f4a4)
    at ui/previewholder.cpp:213
213             width = (itemCount + (h2 - 1)) / h2;
(gdb) bt
#0  0x007259ea in Inkscape::UI::PreviewHolder::calcGridSize
(this=0x2dda9b0,
    thing=0x2ebf6f0, itemCount=138, width=@0x22f4a0,
height=@0x22f4a4)
    at ui/previewholder.cpp:213
#1  0x00725b52 in Inkscape::UI::PreviewHolder::rebuildUI
(this=0x2dda9b0)
    at
c:/mingw/bin/../lib/gcc/mingw32/3.4.4/../../../../include/c++/3.4.4/bits/
stl_vector.h:375
#2  0x00481383 in sp_desktop_widget_init (dtw=0x2db52c0)
    at widgets/desktop-widget.cpp:186
#3  0x00b7bfdb in libiconv_version ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libgobject-2.0-0.dll
#4  0x02db52c0 in ?? ()
#5  0x02db5100 in ?? ()
#6  0x00000000 in ?? () from
#7  0x02db5100 in ?? ()
#8  0x02db5100 in ?? ()
#9  0x00000008 in ?? ()
#10 0x00000000 in ?? () from
#11 0x02db53d8 in ?? ()
#12 0x00b7bb57 in libiconv_version ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libgobject-2.0-0.dll
#13 0x02db5100 in ?? ()
#14 0x02db52c0 in ?? ()
#15 0x02db8990 in ?? ()
---Type <return> to continue, or q <return> to quit---
#16 0x02db52c0 in ?? ()
#17 0x00000000 in ?? () from
#18 0x02db80f8 in ?? ()
#19 0x00000000 in ?? () from
#20 0x00000000 in ?? () from
#21 0x02db48e0 in ?? ()
#22 0x0022f728 in ?? ()
#23 0x00b66dca in libiconv_version ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libgobject-2.0-0.dll
#24 0x02db8990 in ?? ()
#25 0x02db5100 in ?? ()
#26 0x032b4fc0 in ?? ()
#27 0x02db88c0 in ?? ()
#28 0x02db8990 in ?? ()
#29 0x02db88c0 in ?? ()
#30 0x0022f728 in ?? ()
#31 0x00b7e771 in libiconv_version ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libgobject-2.0-0.dll
#32 0x00b91208 in libiconv_version ()
#33 0x02db5d50 in ?? ()
#34 0x77c0d2e0 in msvcrt!_fileinfo ()
#35 0x77c0d4b8 in msvcrt!_fileinfo ()
#36 0x02db8081 in ?? ()
---Type <return> to continue, or q <return> to quit---
#37 0x0022f6cc in ?? ()
#38 0x77bdbae5 in set_sbh_threshold () from
C:\WINDOWS\system32\msvcrt.dll
#39 0x02db80f8 in ?? ()
#40 0x000000a2 in ?? ()
#41 0x00000003 in ?? ()
#42 0x02db807d in ?? ()
#43 0x00000003 in ?? ()
#44 0x77bea52e in unlock () from C:\WINDOWS\system32\msvcrt.dll
#45 0x77c11aa0 in ?? ()
#46 0x0022f718 in ?? ()
#47 0x02db8000 in ?? ()
#48 0x02db8000 in ?? ()
#49 0x77c0d2e0 in msvcrt!_fileinfo ()
#50 0x77c0d4b8 in msvcrt!_fileinfo ()
#51 0x02db808c in ?? ()
#52 0x0022f708 in ?? ()
#53 0x77bdbae5 in set_sbh_threshold () from
C:\WINDOWS\system32\msvcrt.dll
#54 0x02db80f8 in ?? ()
#55 0x00000099 in ?? ()
#56 0x02db8000 in ?? ()
#57 0x77c0d2e0 in msvcrt!_fileinfo ()
#58 0x77c0d4b8 in msvcrt!_fileinfo ()
#59 0x02db8096 in ?? ()
---Type <return> to continue, or q <return> to quit---
#60 0x0022f728 in ?? ()
#61 0x77bdbae5 in set_sbh_threshold () from
C:\WINDOWS\system32\msvcrt.dll
#62 0x02db80f8 in ?? ()
#63 0x02db8990 in ?? ()
#64 0x00000000 in ?? () from
#65 0x00000000 in ?? () from
#66 0x0022f728 in ?? ()
#67 0x00000000 in ?? () from
#68 0x00000000 in ?? () from
#69 0x02db48e0 in ?? ()
#70 0x0022f868 in ?? ()
#71 0x00b6640e in libiconv_version ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libgobject-2.0-0.dll
#72 0x02db8990 in ?? ()
#73 0x00000000 in ?? () from
#74 0x00000000 in ?? () from
#75 0x77bea52e in unlock () from C:\WINDOWS\system32\msvcrt.dll
#76 0x77c11aa0 in ?? ()
#77 0x0022f780 in ?? ()
#78 0x77bdc3a1 in msvcrt!free () from
C:\WINDOWS\system32\msvcrt.dll
#79 0x00000004 in ?? ()
#80 0x77bdc3ce in msvcrt!free () from
C:\WINDOWS\system32\msvcrt.dll
#81 0x00000000 in ?? () from
---Type <return> to continue, or q <return> to quit---
#82 0x00000000 in ?? () from
#83 0x00000000 in ?? () from
#84 0x02db8a10 in ?? ()
#85 0x02d9c850 in ?? ()
#86 0x0022f754 in ?? ()
#87 0x009fccdd in libxml2_dll_iname ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libglib-2.0-0.dll
#88 0x0022f7d8 in ?? ()
#89 0x77be5c94 in msvcrt!_except_handler2 ()
   from C:\WINDOWS\system32\msvcrt.dll
Previous frame inner to this frame (corrupt stack?)
(gdb)

Program received signal SIGFPE, Arithmetic exception.
0x007259ea in Inkscape::UI::PreviewHolder::calcGridSize
(this=0x2dda9b0,
    thing=0x2ebf6f0, itemCount=138, width=@0x22f4a0,
height=@0x22f4a4)
    at ui/previewholder.cpp:213
213             width = (itemCount + (h2 - 1)) / h2;

----------------------------------------------------------------------

Comment By: Ralf Stephan (rwst)
Date: 2006-03-28 13:04

Message:
Logged In: YES
user_id=1275729

Just a guess: is this also if you start from a dir having no
Unicode?

----------------------------------------------------------------------

You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1458675&group_id=93438

Bugs item #1458675, was opened at 2006-03-26 13:13
Message generated for change (Comment added) made by buliabyak
You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1458675&group_id=93438

Please note that this message will contain a full copy of the comment thread,
including the initial issue submission, for this request,
not just the latest update.
Category: None
Group: None
>Status: Closed
Resolution: Fixed
Priority: 9
Submitted By: James Kilfiger (zeimusu)
Assigned to: Jon A. Cruz (joncruz)
Summary: Win XP svn: crash on start. div by zero in previewholder.cpp

Initial Comment:
Build from 0603251700 (from Daniel's thrice daily
builds) doesn't start on Windows XP. An Inkscape error
window shows "Inkscape has encountered an internal
error and will close now."

Gdb says:
$ gdb --symbols=inkscape.dbg inkscape.exe
GNU gdb 5.2.1
Copyright 2002 Free Software Foundation, Inc.
GDB is free software, covered by the GNU General Public
License, and you are
welcome to change it and/or distribute copies of it
under certain conditions.
Type "show copying" to see the conditions.
There is absolutely no warranty for GDB.  Type "show
warranty" for details.
This GDB was configured as "i686-pc-mingw32"...(no
debugging symbols found)...
(gdb) run
Starting program: c:\Documents and Settings\James\デス
クトップ\inkscape/inkscape
.exe

Program received signal SIGFPE, Arithmetic exception.
0x0072291a in _size_of_stack_reserve__ ()
(gdb) bt
#0  0x0072291a in _size_of_stack_reserve__ ()
Cannot access memory at address 0x200000
(gdb)

Other builds may be affected; I haven't tested.

----------------------------------------------------------------------

>Comment By: bulia byak (buliabyak)
Date: 2006-04-14 02:56

Message:
Logged In: YES
user_id=741217

fixed by joncruz recently, i believe

----------------------------------------------------------------------

Comment By: James Kilfiger (zeimusu)
Date: 2006-04-13 19:28

Message:
Logged In: YES
user_id=597079

This should be fixed in SVN

----------------------------------------------------------------------

Comment By: James Kilfiger (zeimusu)
Date: 2006-03-30 17:49

Message:
Logged In: YES
user_id=597079

In preview holder req.height is calculated to be 46, then
req2.height is calculated at 48. int
h2=req.height/req2.height; so h2=0. This leads to the
division by zero. adding a line if (h2==0) {h2=1;} allows
inkscape to run. (though this may hide the real problem
which is req2.height > req.height)

----------------------------------------------------------------------

Comment By: James Kilfiger (zeimusu)
Date: 2006-03-30 17:46

Message:
Logged In: YES
user_id=597079

In preview holder req.height is calculated to be 46, then
req2.height is calculated at 48. int
h2=req.height/req2.height; so h2=0. This leads to the
division by zero. adding a line if (h2==0) {h2=1;} allows
inkscape to run. (though this may hide the real problem
which is req2.height > req.height)

----------------------------------------------------------------------

Comment By: James Kilfiger (zeimusu)
Date: 2006-03-29 18:03

Message:
Logged In: YES
user_id=597079

I think that it's a good guess that unicode filenames might
be implicated. But I get the same error when starting from a
"regular" directory. The summary might need to be changed
because starting from a directory with unicode isn't the
problem.

However I have got a nice lot of output from gdb, cut and
pasted below.

This was from a clean build I made myself (svn export ...)
from today.

[...]
gdb: kernel event for pid=3764 tid=3776
code=EXCEPTION_DEBUG_EVENT)
gdb: Target exception STATUS_INTEGER_DIVIDE_BY_ZERO at
0x007259ea

Program received signal SIGFPE, Arithmetic exception.
0x007259ea in Inkscape::UI::PreviewHolder::calcGridSize
(this=0x2dda9b0,
    thing=0x2ebf6f0, itemCount=138, width=@0x22f4a0,
height=@0x22f4a4)
    at ui/previewholder.cpp:213
213             width = (itemCount + (h2 - 1)) / h2;
(gdb) bt
#0  0x007259ea in Inkscape::UI::PreviewHolder::calcGridSize
(this=0x2dda9b0,
    thing=0x2ebf6f0, itemCount=138, width=@0x22f4a0,
height=@0x22f4a4)
    at ui/previewholder.cpp:213
#1  0x00725b52 in Inkscape::UI::PreviewHolder::rebuildUI
(this=0x2dda9b0)
    at
c:/mingw/bin/../lib/gcc/mingw32/3.4.4/../../../../include/c++/3.4.4/bits/
stl_vector.h:375
#2  0x00481383 in sp_desktop_widget_init (dtw=0x2db52c0)
    at widgets/desktop-widget.cpp:186
#3  0x00b7bfdb in libiconv_version ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libgobject-2.0-0.dll
#4  0x02db52c0 in ?? ()
#5  0x02db5100 in ?? ()
#6  0x00000000 in ?? () from
#7  0x02db5100 in ?? ()
#8  0x02db5100 in ?? ()
#9  0x00000008 in ?? ()
#10 0x00000000 in ?? () from
#11 0x02db53d8 in ?? ()
#12 0x00b7bb57 in libiconv_version ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libgobject-2.0-0.dll
#13 0x02db5100 in ?? ()
#14 0x02db52c0 in ?? ()
#15 0x02db8990 in ?? ()
---Type <return> to continue, or q <return> to quit---
#16 0x02db52c0 in ?? ()
#17 0x00000000 in ?? () from
#18 0x02db80f8 in ?? ()
#19 0x00000000 in ?? () from
#20 0x00000000 in ?? () from
#21 0x02db48e0 in ?? ()
#22 0x0022f728 in ?? ()
#23 0x00b66dca in libiconv_version ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libgobject-2.0-0.dll
#24 0x02db8990 in ?? ()
#25 0x02db5100 in ?? ()
#26 0x032b4fc0 in ?? ()
#27 0x02db88c0 in ?? ()
#28 0x02db8990 in ?? ()
#29 0x02db88c0 in ?? ()
#30 0x0022f728 in ?? ()
#31 0x00b7e771 in libiconv_version ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libgobject-2.0-0.dll
#32 0x00b91208 in libiconv_version ()
#33 0x02db5d50 in ?? ()
#34 0x77c0d2e0 in msvcrt!_fileinfo ()
#35 0x77c0d4b8 in msvcrt!_fileinfo ()
#36 0x02db8081 in ?? ()
---Type <return> to continue, or q <return> to quit---
#37 0x0022f6cc in ?? ()
#38 0x77bdbae5 in set_sbh_threshold () from
C:\WINDOWS\system32\msvcrt.dll
#39 0x02db80f8 in ?? ()
#40 0x000000a2 in ?? ()
#41 0x00000003 in ?? ()
#42 0x02db807d in ?? ()
#43 0x00000003 in ?? ()
#44 0x77bea52e in unlock () from C:\WINDOWS\system32\msvcrt.dll
#45 0x77c11aa0 in ?? ()
#46 0x0022f718 in ?? ()
#47 0x02db8000 in ?? ()
#48 0x02db8000 in ?? ()
#49 0x77c0d2e0 in msvcrt!_fileinfo ()
#50 0x77c0d4b8 in msvcrt!_fileinfo ()
#51 0x02db808c in ?? ()
#52 0x0022f708 in ?? ()
#53 0x77bdbae5 in set_sbh_threshold () from
C:\WINDOWS\system32\msvcrt.dll
#54 0x02db80f8 in ?? ()
#55 0x00000099 in ?? ()
#56 0x02db8000 in ?? ()
#57 0x77c0d2e0 in msvcrt!_fileinfo ()
#58 0x77c0d4b8 in msvcrt!_fileinfo ()
#59 0x02db8096 in ?? ()
---Type <return> to continue, or q <return> to quit---
#60 0x0022f728 in ?? ()
#61 0x77bdbae5 in set_sbh_threshold () from
C:\WINDOWS\system32\msvcrt.dll
#62 0x02db80f8 in ?? ()
#63 0x02db8990 in ?? ()
#64 0x00000000 in ?? () from
#65 0x00000000 in ?? () from
#66 0x0022f728 in ?? ()
#67 0x00000000 in ?? () from
#68 0x00000000 in ?? () from
#69 0x02db48e0 in ?? ()
#70 0x0022f868 in ?? ()
#71 0x00b6640e in libiconv_version ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libgobject-2.0-0.dll
#72 0x02db8990 in ?? ()
#73 0x00000000 in ?? () from
#74 0x00000000 in ?? () from
#75 0x77bea52e in unlock () from C:\WINDOWS\system32\msvcrt.dll
#76 0x77c11aa0 in ?? ()
#77 0x0022f780 in ?? ()
#78 0x77bdc3a1 in msvcrt!free () from
C:\WINDOWS\system32\msvcrt.dll
#79 0x00000004 in ?? ()
#80 0x77bdc3ce in msvcrt!free () from
C:\WINDOWS\system32\msvcrt.dll
#81 0x00000000 in ?? () from
---Type <return> to continue, or q <return> to quit---
#82 0x00000000 in ?? () from
#83 0x00000000 in ?? () from
#84 0x02db8a10 in ?? ()
#85 0x02d9c850 in ?? ()
#86 0x0022f754 in ?? ()
#87 0x009fccdd in libxml2_dll_iname ()
   from
C:\cygwin\home\James\inkscape.clean\inkscape\libglib-2.0-0.dll
#88 0x0022f7d8 in ?? ()
#89 0x77be5c94 in msvcrt!_except_handler2 ()
   from C:\WINDOWS\system32\msvcrt.dll
Previous frame inner to this frame (corrupt stack?)
(gdb)

Program received signal SIGFPE, Arithmetic exception.
0x007259ea in Inkscape::UI::PreviewHolder::calcGridSize
(this=0x2dda9b0,
    thing=0x2ebf6f0, itemCount=138, width=@0x22f4a0,
height=@0x22f4a4)
    at ui/previewholder.cpp:213
213             width = (itemCount + (h2 - 1)) / h2;

----------------------------------------------------------------------

Comment By: Ralf Stephan (rwst)
Date: 2006-03-28 13:04

Message:
Logged In: YES
user_id=1275729

Just a guess: is this also if you start from a dir having no
Unicode?

----------------------------------------------------------------------

You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1458675&group_id=93438

Bugs item #1469554, was opened at 2006-04-13 04:04
Message generated for change (Comment added) made by buliabyak
You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1469554&group_id=93438

Please note that this message will contain a full copy of the comment thread,
including the initial issue submission, for this request,
not just the latest update.
Category: None
Group: None
Status: Open
Resolution: None
Priority: 5
Submitted By: Sven Herzberg (herzi)
Assigned to: Jon A. Cruz (joncruz)
Summary: fixed length toolbars prevent working on narrow screens

Initial Comment:
Thanks for this great application.

I have a TabletPC laptop with rotatable display (Lenovo
ThinkPad X41 Tablet). Unfortunately inkscape is not
usable in the rotated resolution (768x1024) because the
toolbar forses the window to be too wide.

Attaching a screenshot.

----------------------------------------------------------------------

>Comment By: bulia byak (buliabyak)
Date: 2006-04-13 19:56

Message:
Logged In: YES
user_id=741217

Jon, here's another one for you to close when you fix our
toolbars :)

----------------------------------------------------------------------

You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1469554&group_id=93438

Bugs item #1469718, was opened at 2006-04-13 13:07
Message generated for change (Comment added) made by knutux
You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1469718&group_id=93438

Please note that this message will contain a full copy of the comment thread,
including the initial issue submission, for this request,
not just the latest update.
Category: Other
Group: All Platforms
Status: Open
Resolution: None
Priority: 5
Submitted By: Hans Nieser (aphax)
Assigned to: Nobody/Anonymous (nobody)
Summary: Crash on create/drag object with certain snap settings

Initial Comment:
When I have a document with certain snap settings,
creating or dragging a shape will make Inkscape crash
(Segmentation Fault). These are the steps to reproduce:


a) Create new document (or open existing one)

b) Set snap settings as follows:

Everything off, except:
  Object snapping:
    Snap nodes to object
    Snap to object paths
  Grid snapping:
    Snap nodes to grid
    Always snap
  Guide snapping:
    Snap points to guides

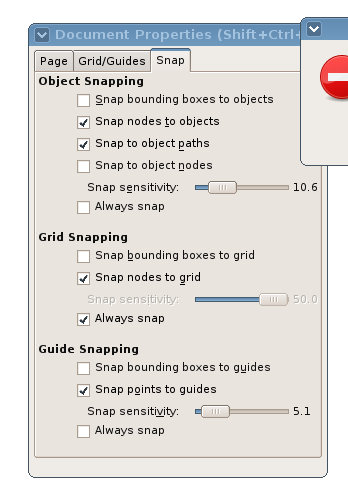

(Illustrated in this  screenshot:
http://www.aphax.nl/images/inkscape/snapcrash.png)

c) Create new, or drag shape

d) Observe crash (internal error/segmentation fault),
if not, then tick off all snapping settings and go back
to step b) (I had to do this once).

Backtrace of SVN April 13, 11:00 CEST:

$ gdb /home/hans/dev/inkscape/bin/inkscape
GNU gdb 6.4
Copyright 2005 Free Software Foundation, Inc.
GDB is free software, covered by the GNU General Public
License, and you are
welcome to change it and/or distribute copies of it
under certain conditions.
Type "show copying" to see the conditions.
There is absolutely no warranty for GDB.  Type "show
warranty" for details.
This GDB was configured as "i686-pc-linux-gnu"...Using
host libthread_db library "/lib/libthread_db.so.1".

(gdb) run
Starting program: /home/hans/dev/inkscape/bin/inkscape
[Thread debugging using libthread_db enabled]
[New Thread -1227856208 (LWP 407)]

Program received signal SIGSEGV, Segmentation fault.
[Switching to Thread -1227856208 (LWP 407)]
0x08392ea6 in Path::PointToCurvilignPosition (this=0x0,
pos=@0x0) at livarot/PathCutting.cpp:914
914     {
(gdb) bt
#0  0x08392ea6 in Path::PointToCurvilignPosition
(this=0x0, pos=@0x0) at livarot/PathCutting.cpp:914
#1  0x0821d473 in get_nearest_position_on_Path
(path=0x0, p=Cannot access memory at address 0x0) at
splivarot.cpp:1573
#2  0x08211a6f in Inkscape::ObjectSnapper::_snapPaths
(this=0x85f10c8, s=@0xbf9c1da0, p=@0xbf9c2000,
cand=@0xbf9c1d00) at nr-point.h:47
#3  0x082122ec in Inkscape::ObjectSnapper::_doFreeSnap
(this=0x85f10c8, p=@0xbf9c2000, it=@0x0) at
object-snapper.cpp:155
#4  0x0816a807 in Inkscape::Snapper::freeSnap
(this=0x85f10c8, t=0, p=@0xbf9c2000, it=@0x0) at
snapper.cpp:120
#5  0x08210dfb in SnapManager::freeSnap (this=0x0, t=3,
p=@0xbf9c2000, it=@0xbf9c1e50) at stl_list.h:212
#6  0x082110f7 in SnapManager::freeSnap (this=0x0, t=0,
p=@0x0) at snap.cpp:51
#7  0x082040f4 in sp_rect_context_root_handler
(event_context=0xbf9c1ff0, event=0x89be344) at
nr-point.h:52
#8  0x081e2fe1 in sp_event_context_root_handler
(event_context=0x9647e98, event=0x89be344) at
event-context.cpp:826
#9  0x08331ec4 in sp_marshal_BOOLEAN__POINTER
(closure=0x87d0190, return_value=0xbf9c2260,
n_param_values=0, param_values=0xbf9c22d0,
invocation_hint=0xbf9c21b8, marshal_data=0x0) at
helper/sp-marshal.cpp:350
#10 0xb6fa4146 in g_closure_invoke () from
/usr/lib/libgobject-2.0.so.0
#11 0xb6fb54c5 in g_signal_emit_by_name () from
/usr/lib/libgobject-2.0.so.0
#12 0xb6fb4375 in g_signal_emit_valist () from
/usr/lib/libgobject-2.0.so.0
#13 0xb7954103 in gtk_signal_emit () from
/usr/lib/libgtk-x11-2.0.so.0
#14 0x0832ca00 in emit_event (canvas=0x0,
event=0x85c9fe0) at display/sp-canvas.cpp:1241
#15 0x0832cfa3 in sp_canvas_button (widget=0x0,
event=0x89be2f8) at display/sp-canvas.cpp:1434
#16 0xb79062a0 in gtk_marshal_VOID__UINT_STRING () from
/usr/lib/libgtk-x11-2.0.so.0
#17 0xb6fa4409 in g_cclosure_new_swap () from
/usr/lib/libgobject-2.0.so.0
#18 0xb6fa4146 in g_closure_invoke () from
/usr/lib/libgobject-2.0.so.0
#19 0xb6fb4f3b in g_signal_emit_by_name () from
/usr/lib/libgobject-2.0.so.0
#20 0xb6fb4375 in g_signal_emit_valist () from
/usr/lib/libgobject-2.0.so.0
#21 0xb6fb4806 in g_signal_emit () from
/usr/lib/libgobject-2.0.so.0
#22 0xb79fe836 in gtk_widget_activate () from
/usr/lib/libgtk-x11-2.0.so.0
#23 0xb7904797 in gtk_propagate_event () from
/usr/lib/libgtk-x11-2.0.so.0
#24 0xb7904abf in gtk_main_do_event () from
/usr/lib/libgtk-x11-2.0.so.0
#25 0xb779ef32 in gdk_event_get_graphics_expose () from
/usr/lib/libgdk-x11-2.0.so.0
#26 0xb6f3c31f in g_main_depth () from
/usr/lib/libglib-2.0.so.0
#27 0xb6f3d312 in g_main_context_dispatch () from
/usr/lib/libglib-2.0.so.0
#28 0xb6f3d64b in g_main_context_dispatch () from
/usr/lib/libglib-2.0.so.0
#29 0xb6f3dbc1 in g_main_loop_run () from
/usr/lib/libglib-2.0.so.0
#30 0xb7903d43 in gtk_main () from
/usr/lib/libgtk-x11-2.0.so.0
#31 0xb7e6a547 in Gtk::Main::run_impl () from
/usr/lib/libgtkmm-2.4.so.1
#32 0xb7e6a3f2 in Gtk::Main::run () from
/usr/lib/libgtkmm-2.4.so.1
#33 0x0814ddba in sp_main_gui (argc=1, argv=0xbf9c2cf4)
at main.cpp:642
#34 0x0822ad1c in
Inkscape::NSApplication::Application::run
(this=0xbf9c2c20) at application/application.cpp:117
#35 0x0814d8ad in main (argc=1, argv=0xbf9c2cf4) at
main.cpp:477
(gdb) quit
The program is running.  Exit anyway? (y or n) y

----------------------------------------------------------------------

>Comment By: Andrius R. (knutux)
Date: 2006-04-13 13:37

Message:
Logged In: YES
user_id=1238665

Commited a quick fix to Inkscape::ObjectSnapper::_snapPaths,
did not test all the options to be sure fix is complete

----------------------------------------------------------------------

You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1469718&group_id=93438

Bugs item #1469718, was opened at 2006-04-13 12:07
Message generated for change (Comment added) made by aphax
You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1469718&group_id=93438

Please note that this message will contain a full copy of the comment thread,
including the initial issue submission, for this request,
not just the latest update.
Category: Other
Group: All Platforms
Status: Open
Resolution: None
Priority: 5
Submitted By: Hans Nieser (aphax)
Assigned to: Nobody/Anonymous (nobody)
Summary: Crash on create/drag object with certain snap settings

Initial Comment:
When I have a document with certain snap settings,
creating or dragging a shape will make Inkscape crash
(Segmentation Fault). These are the steps to reproduce:


a) Create new document (or open existing one)

b) Set snap settings as follows:

Everything off, except:
  Object snapping:
    Snap nodes to object
    Snap to object paths
  Grid snapping:
    Snap nodes to grid
    Always snap
  Guide snapping:
    Snap points to guides

(Illustrated in this  screenshot:
http://www.aphax.nl/images/inkscape/snapcrash.png)

c) Create new, or drag shape

d) Observe crash (internal error/segmentation fault),
if not, then tick off all snapping settings and go back
to step b) (I had to do this once).

Backtrace of SVN April 13, 11:00 CEST:

$ gdb /home/hans/dev/inkscape/bin/inkscape
GNU gdb 6.4
Copyright 2005 Free Software Foundation, Inc.
GDB is free software, covered by the GNU General Public
License, and you are
welcome to change it and/or distribute copies of it
under certain conditions.
Type "show copying" to see the conditions.
There is absolutely no warranty for GDB.  Type "show
warranty" for details.
This GDB was configured as "i686-pc-linux-gnu"...Using
host libthread_db library "/lib/libthread_db.so.1".

(gdb) run
Starting program: /home/hans/dev/inkscape/bin/inkscape
[Thread debugging using libthread_db enabled]
[New Thread -1227856208 (LWP 407)]

Program received signal SIGSEGV, Segmentation fault.
[Switching to Thread -1227856208 (LWP 407)]
0x08392ea6 in Path::PointToCurvilignPosition (this=0x0,
pos=@0x0) at livarot/PathCutting.cpp:914
914     {
(gdb) bt
#0  0x08392ea6 in Path::PointToCurvilignPosition
(this=0x0, pos=@0x0) at livarot/PathCutting.cpp:914
#1  0x0821d473 in get_nearest_position_on_Path
(path=0x0, p=Cannot access memory at address 0x0) at
splivarot.cpp:1573
#2  0x08211a6f in Inkscape::ObjectSnapper::_snapPaths
(this=0x85f10c8, s=@0xbf9c1da0, p=@0xbf9c2000,
cand=@0xbf9c1d00) at nr-point.h:47
#3  0x082122ec in Inkscape::ObjectSnapper::_doFreeSnap
(this=0x85f10c8, p=@0xbf9c2000, it=@0x0) at
object-snapper.cpp:155
#4  0x0816a807 in Inkscape::Snapper::freeSnap
(this=0x85f10c8, t=0, p=@0xbf9c2000, it=@0x0) at
snapper.cpp:120
#5  0x08210dfb in SnapManager::freeSnap (this=0x0, t=3,
p=@0xbf9c2000, it=@0xbf9c1e50) at stl_list.h:212
#6  0x082110f7 in SnapManager::freeSnap (this=0x0, t=0,
p=@0x0) at snap.cpp:51
#7  0x082040f4 in sp_rect_context_root_handler
(event_context=0xbf9c1ff0, event=0x89be344) at
nr-point.h:52
#8  0x081e2fe1 in sp_event_context_root_handler
(event_context=0x9647e98, event=0x89be344) at
event-context.cpp:826
#9  0x08331ec4 in sp_marshal_BOOLEAN__POINTER
(closure=0x87d0190, return_value=0xbf9c2260,
n_param_values=0, param_values=0xbf9c22d0,
invocation_hint=0xbf9c21b8, marshal_data=0x0) at
helper/sp-marshal.cpp:350
#10 0xb6fa4146 in g_closure_invoke () from
/usr/lib/libgobject-2.0.so.0
#11 0xb6fb54c5 in g_signal_emit_by_name () from
/usr/lib/libgobject-2.0.so.0
#12 0xb6fb4375 in g_signal_emit_valist () from
/usr/lib/libgobject-2.0.so.0
#13 0xb7954103 in gtk_signal_emit () from
/usr/lib/libgtk-x11-2.0.so.0
#14 0x0832ca00 in emit_event (canvas=0x0,
event=0x85c9fe0) at display/sp-canvas.cpp:1241
#15 0x0832cfa3 in sp_canvas_button (widget=0x0,
event=0x89be2f8) at display/sp-canvas.cpp:1434
#16 0xb79062a0 in gtk_marshal_VOID__UINT_STRING () from
/usr/lib/libgtk-x11-2.0.so.0
#17 0xb6fa4409 in g_cclosure_new_swap () from
/usr/lib/libgobject-2.0.so.0
#18 0xb6fa4146 in g_closure_invoke () from
/usr/lib/libgobject-2.0.so.0
#19 0xb6fb4f3b in g_signal_emit_by_name () from
/usr/lib/libgobject-2.0.so.0
#20 0xb6fb4375 in g_signal_emit_valist () from
/usr/lib/libgobject-2.0.so.0
#21 0xb6fb4806 in g_signal_emit () from
/usr/lib/libgobject-2.0.so.0
#22 0xb79fe836 in gtk_widget_activate () from
/usr/lib/libgtk-x11-2.0.so.0
#23 0xb7904797 in gtk_propagate_event () from
/usr/lib/libgtk-x11-2.0.so.0
#24 0xb7904abf in gtk_main_do_event () from
/usr/lib/libgtk-x11-2.0.so.0
#25 0xb779ef32 in gdk_event_get_graphics_expose () from
/usr/lib/libgdk-x11-2.0.so.0
#26 0xb6f3c31f in g_main_depth () from
/usr/lib/libglib-2.0.so.0
#27 0xb6f3d312 in g_main_context_dispatch () from
/usr/lib/libglib-2.0.so.0
#28 0xb6f3d64b in g_main_context_dispatch () from
/usr/lib/libglib-2.0.so.0
#29 0xb6f3dbc1 in g_main_loop_run () from
/usr/lib/libglib-2.0.so.0
#30 0xb7903d43 in gtk_main () from
/usr/lib/libgtk-x11-2.0.so.0
#31 0xb7e6a547 in Gtk::Main::run_impl () from
/usr/lib/libgtkmm-2.4.so.1
#32 0xb7e6a3f2 in Gtk::Main::run () from
/usr/lib/libgtkmm-2.4.so.1
#33 0x0814ddba in sp_main_gui (argc=1, argv=0xbf9c2cf4)
at main.cpp:642
#34 0x0822ad1c in
Inkscape::NSApplication::Application::run
(this=0xbf9c2c20) at application/application.cpp:117
#35 0x0814d8ad in main (argc=1, argv=0xbf9c2cf4) at
main.cpp:477
(gdb) quit
The program is running.  Exit anyway? (y or n) y

----------------------------------------------------------------------

>Comment By: Hans Nieser (aphax)
Date: 2006-04-13 13:32

Message:
Logged In: YES
user_id=1384114

Thanks for the quick fix! I can't get it to crash again
after fiddling with various snap settings for a few minutes
(though I haven't tried every possible combination).

----------------------------------------------------------------------

Comment By: Andrius R. (knutux)
Date: 2006-04-13 12:37

Message:
Logged In: YES
user_id=1238665

Commited a quick fix to Inkscape::ObjectSnapper::_snapPaths,
did not test all the options to be sure fix is complete

----------------------------------------------------------------------

You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1469718&group_id=93438

Bugs item #1469718, was opened at 2006-04-13 14:07
Message generated for change (Settings changed) made by buliabyak
You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1469718&group_id=93438

Please note that this message will contain a full copy of the comment thread,
including the initial issue submission, for this request,
not just the latest update.
Category: Other
Group: All Platforms
>Status: Closed
>Resolution: Fixed
Priority: 5
Submitted By: Hans Nieser (aphax)
Assigned to: Nobody/Anonymous (nobody)
Summary: Crash on create/drag object with certain snap settings

Initial Comment:
When I have a document with certain snap settings,
creating or dragging a shape will make Inkscape crash
(Segmentation Fault). These are the steps to reproduce:


a) Create new document (or open existing one)

b) Set snap settings as follows:

Everything off, except:
  Object snapping:
    Snap nodes to object
    Snap to object paths
  Grid snapping:
    Snap nodes to grid
    Always snap
  Guide snapping:
    Snap points to guides

(Illustrated in this  screenshot:
http://www.aphax.nl/images/inkscape/snapcrash.png)

c) Create new, or drag shape

d) Observe crash (internal error/segmentation fault),
if not, then tick off all snapping settings and go back
to step b) (I had to do this once).

Backtrace of SVN April 13, 11:00 CEST:

$ gdb /home/hans/dev/inkscape/bin/inkscape
GNU gdb 6.4
Copyright 2005 Free Software Foundation, Inc.
GDB is free software, covered by the GNU General Public
License, and you are
welcome to change it and/or distribute copies of it
under certain conditions.
Type "show copying" to see the conditions.
There is absolutely no warranty for GDB.  Type "show
warranty" for details.
This GDB was configured as "i686-pc-linux-gnu"...Using
host libthread_db library "/lib/libthread_db.so.1".

(gdb) run
Starting program: /home/hans/dev/inkscape/bin/inkscape
[Thread debugging using libthread_db enabled]
[New Thread -1227856208 (LWP 407)]

Program received signal SIGSEGV, Segmentation fault.
[Switching to Thread -1227856208 (LWP 407)]
0x08392ea6 in Path::PointToCurvilignPosition (this=0x0,
pos=@0x0) at livarot/PathCutting.cpp:914
914     {
(gdb) bt
#0  0x08392ea6 in Path::PointToCurvilignPosition
(this=0x0, pos=@0x0) at livarot/PathCutting.cpp:914
#1  0x0821d473 in get_nearest_position_on_Path
(path=0x0, p=Cannot access memory at address 0x0) at
splivarot.cpp:1573
#2  0x08211a6f in Inkscape::ObjectSnapper::_snapPaths
(this=0x85f10c8, s=@0xbf9c1da0, p=@0xbf9c2000,
cand=@0xbf9c1d00) at nr-point.h:47
#3  0x082122ec in Inkscape::ObjectSnapper::_doFreeSnap
(this=0x85f10c8, p=@0xbf9c2000, it=@0x0) at
object-snapper.cpp:155
#4  0x0816a807 in Inkscape::Snapper::freeSnap
(this=0x85f10c8, t=0, p=@0xbf9c2000, it=@0x0) at
snapper.cpp:120
#5  0x08210dfb in SnapManager::freeSnap (this=0x0, t=3,
p=@0xbf9c2000, it=@0xbf9c1e50) at stl_list.h:212
#6  0x082110f7 in SnapManager::freeSnap (this=0x0, t=0,
p=@0x0) at snap.cpp:51
#7  0x082040f4 in sp_rect_context_root_handler
(event_context=0xbf9c1ff0, event=0x89be344) at
nr-point.h:52
#8  0x081e2fe1 in sp_event_context_root_handler
(event_context=0x9647e98, event=0x89be344) at
event-context.cpp:826
#9  0x08331ec4 in sp_marshal_BOOLEAN__POINTER
(closure=0x87d0190, return_value=0xbf9c2260,
n_param_values=0, param_values=0xbf9c22d0,
invocation_hint=0xbf9c21b8, marshal_data=0x0) at
helper/sp-marshal.cpp:350
#10 0xb6fa4146 in g_closure_invoke () from
/usr/lib/libgobject-2.0.so.0
#11 0xb6fb54c5 in g_signal_emit_by_name () from
/usr/lib/libgobject-2.0.so.0
#12 0xb6fb4375 in g_signal_emit_valist () from
/usr/lib/libgobject-2.0.so.0
#13 0xb7954103 in gtk_signal_emit () from
/usr/lib/libgtk-x11-2.0.so.0
#14 0x0832ca00 in emit_event (canvas=0x0,
event=0x85c9fe0) at display/sp-canvas.cpp:1241
#15 0x0832cfa3 in sp_canvas_button (widget=0x0,
event=0x89be2f8) at display/sp-canvas.cpp:1434
#16 0xb79062a0 in gtk_marshal_VOID__UINT_STRING () from
/usr/lib/libgtk-x11-2.0.so.0
#17 0xb6fa4409 in g_cclosure_new_swap () from
/usr/lib/libgobject-2.0.so.0
#18 0xb6fa4146 in g_closure_invoke () from
/usr/lib/libgobject-2.0.so.0
#19 0xb6fb4f3b in g_signal_emit_by_name () from
/usr/lib/libgobject-2.0.so.0
#20 0xb6fb4375 in g_signal_emit_valist () from
/usr/lib/libgobject-2.0.so.0
#21 0xb6fb4806 in g_signal_emit () from
/usr/lib/libgobject-2.0.so.0
#22 0xb79fe836 in gtk_widget_activate () from
/usr/lib/libgtk-x11-2.0.so.0
#23 0xb7904797 in gtk_propagate_event () from
/usr/lib/libgtk-x11-2.0.so.0
#24 0xb7904abf in gtk_main_do_event () from
/usr/lib/libgtk-x11-2.0.so.0
#25 0xb779ef32 in gdk_event_get_graphics_expose () from
/usr/lib/libgdk-x11-2.0.so.0
#26 0xb6f3c31f in g_main_depth () from
/usr/lib/libglib-2.0.so.0
#27 0xb6f3d312 in g_main_context_dispatch () from
/usr/lib/libglib-2.0.so.0
#28 0xb6f3d64b in g_main_context_dispatch () from
/usr/lib/libglib-2.0.so.0
#29 0xb6f3dbc1 in g_main_loop_run () from
/usr/lib/libglib-2.0.so.0
#30 0xb7903d43 in gtk_main () from
/usr/lib/libgtk-x11-2.0.so.0
#31 0xb7e6a547 in Gtk::Main::run_impl () from
/usr/lib/libgtkmm-2.4.so.1
#32 0xb7e6a3f2 in Gtk::Main::run () from
/usr/lib/libgtkmm-2.4.so.1
#33 0x0814ddba in sp_main_gui (argc=1, argv=0xbf9c2cf4)
at main.cpp:642
#34 0x0822ad1c in
Inkscape::NSApplication::Application::run
(this=0xbf9c2c20) at application/application.cpp:117
#35 0x0814d8ad in main (argc=1, argv=0xbf9c2cf4) at
main.cpp:477
(gdb) quit
The program is running.  Exit anyway? (y or n) y

----------------------------------------------------------------------

>Comment By: bulia byak (buliabyak)
Date: 2006-04-13 19:50

Message:
Logged In: YES
user_id=741217

thanks for the fix knutux!

----------------------------------------------------------------------

Comment By: Hans Nieser (aphax)
Date: 2006-04-13 15:32

Message:
Logged In: YES
user_id=1384114

Thanks for the quick fix! I can't get it to crash again
after fiddling with various snap settings for a few minutes
(though I haven't tried every possible combination).

----------------------------------------------------------------------

Comment By: Andrius R. (knutux)
Date: 2006-04-13 14:37

Message:
Logged In: YES
user_id=1238665

Commited a quick fix to Inkscape::ObjectSnapper::_snapPaths,
did not test all the options to be sure fix is complete

----------------------------------------------------------------------

You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1469718&group_id=93438

Bugs item #1467955, was opened at 2006-04-10 22:21
Message generated for change (Settings changed) made by cwebb
You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1467955&group_id=93438

Please note that this message will contain a full copy of the comment thread,
including the initial issue submission, for this request,
not just the latest update.
Category: Extensions
Group: None
Status: Open
Resolution: None
Priority: 2
Submitted By: cornelius[cz] (cwebb)
>Assigned to: Ted Gould (gouldtj)
Summary: Blur edge extension is twice in the menu

Initial Comment:
The extension "Blur edge" is in the "Generate from
path" menu placed twice.

----------------------------------------------------------------------

Comment By: cornelius[cz] (cwebb)
Date: 2006-04-13 14:30

Message:
Logged In: YES
user_id=734730

And a "Grid" is in the Effects menu placed twice too. Once
in the main menu and the second is under the Render submenu.

----------------------------------------------------------------------

Comment By: cornelius[cz] (cwebb)
Date: 2006-04-10 22:26

Message:
Logged In: YES
user_id=734730

I forgot: I've noticed this on Windows in the actual svn
build and several builds before too.

----------------------------------------------------------------------

You can respond by visiting:
https://sourceforge.net/tracker/?func=detail&atid=604306&aid=1467955&group_id=93438
